CineD Interview - IBC2024
Cineroid DeepEye Studio - A Fully Robotic Studio Operated by a Single Person
Project sample: Consumer electronics
Shooting UX - FULL
Results of the shoot โ Bespoke Jet
Project sample: Small devices
Shooting process
Results of the shoot โ Illy coffee machine

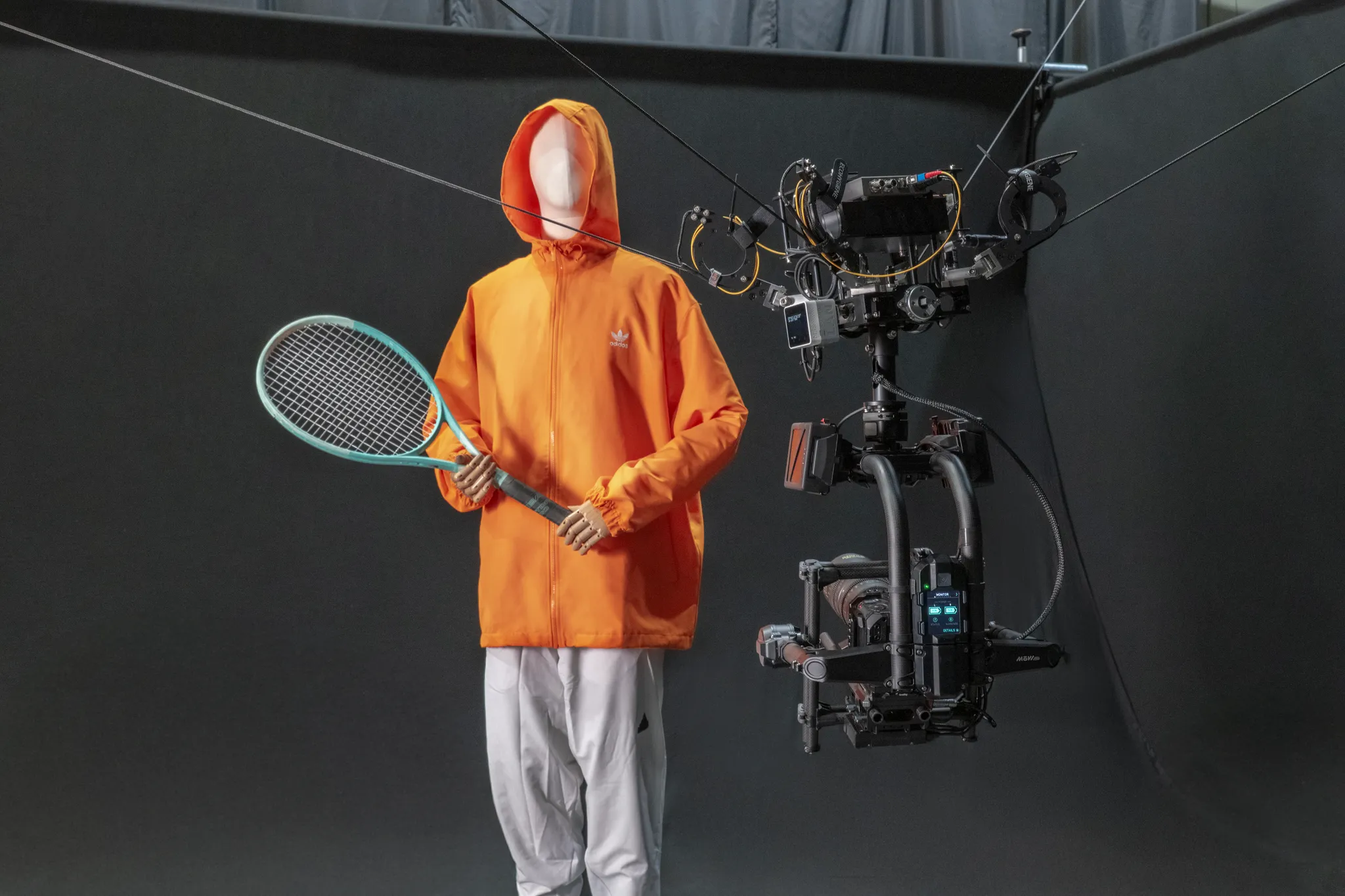

Project sample: Apparel
Shooting process
Results of the shoot โ LACOSTELACOSTE
Reference studio at KOBA show
Standard Plan

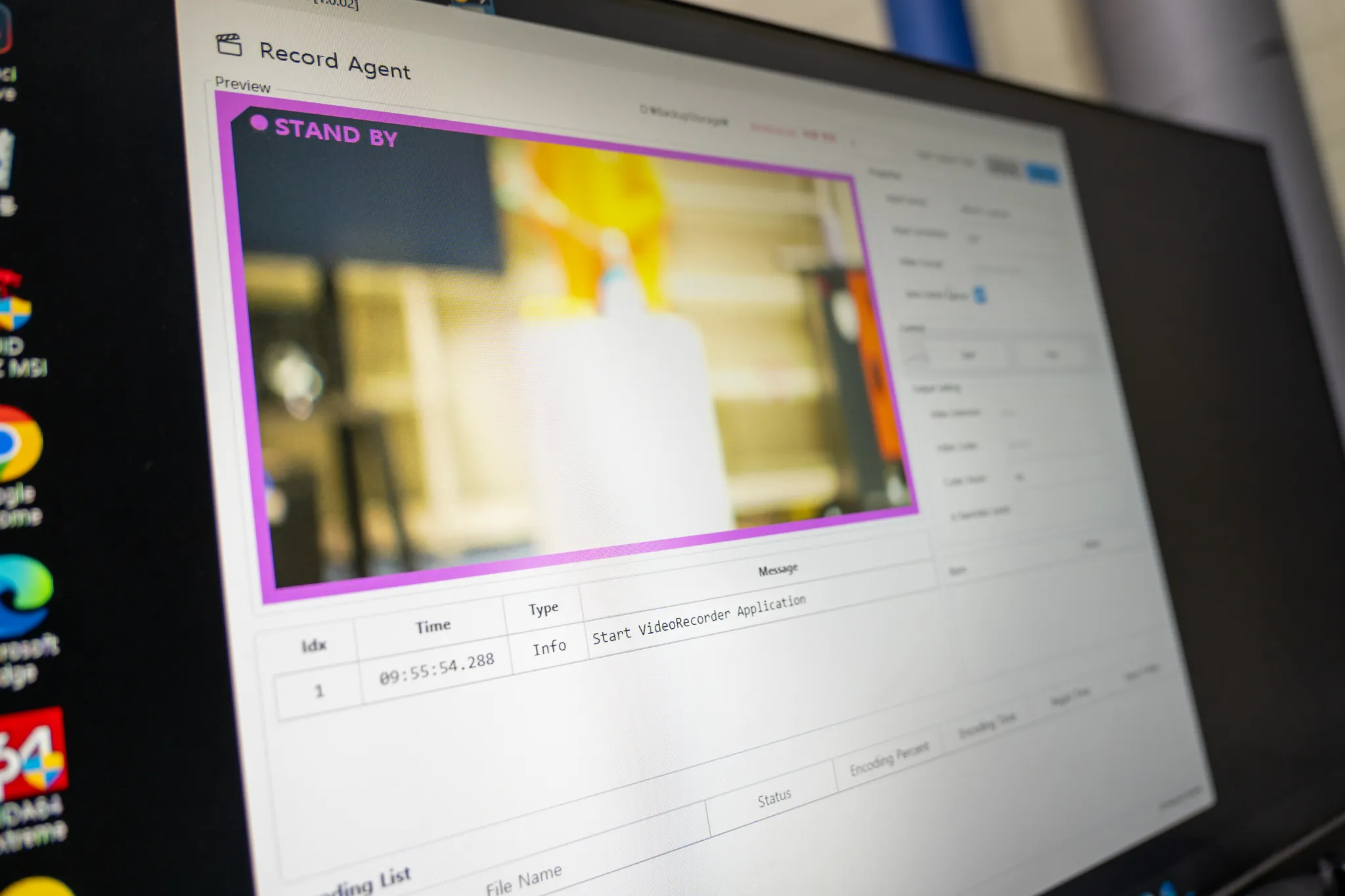

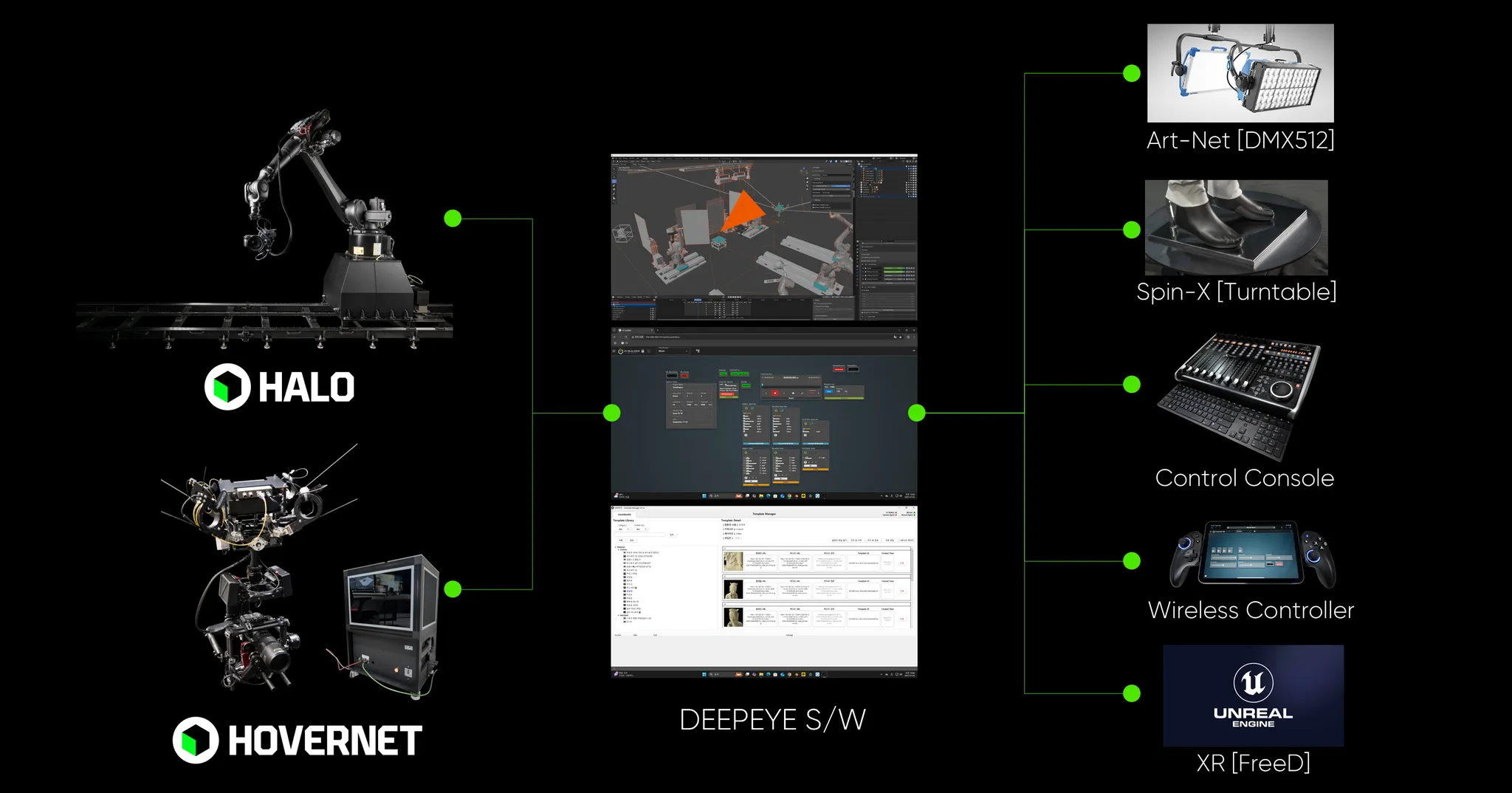

Software
Control Software * License provision(annual subscription type)

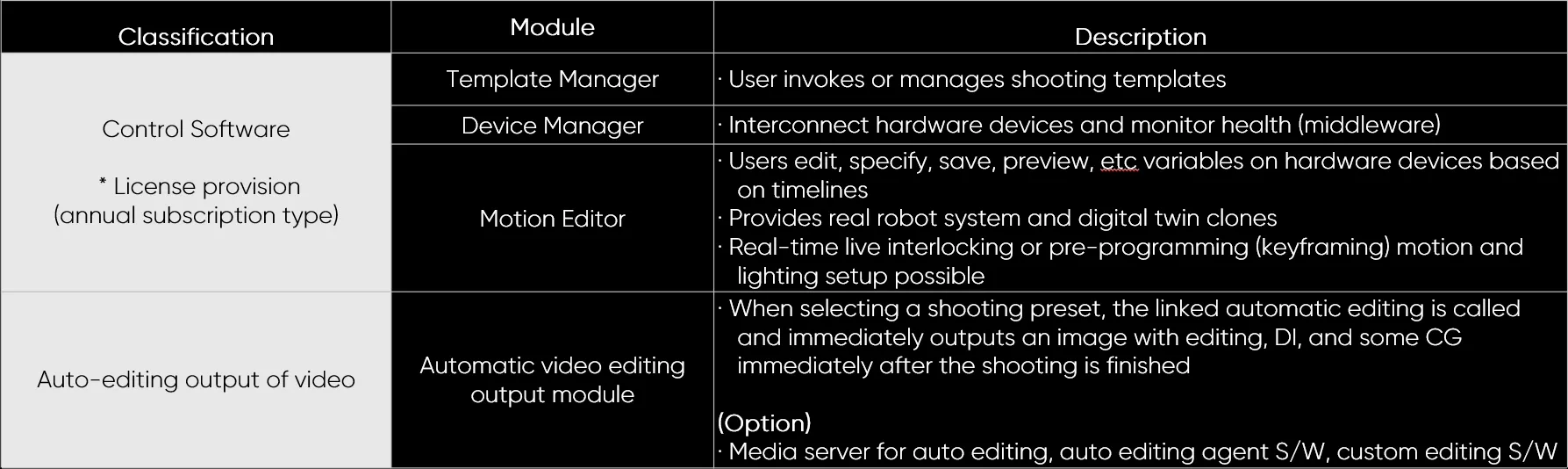

Module | Description |
Template Manager | ยท User invokes or manages shooting templates |

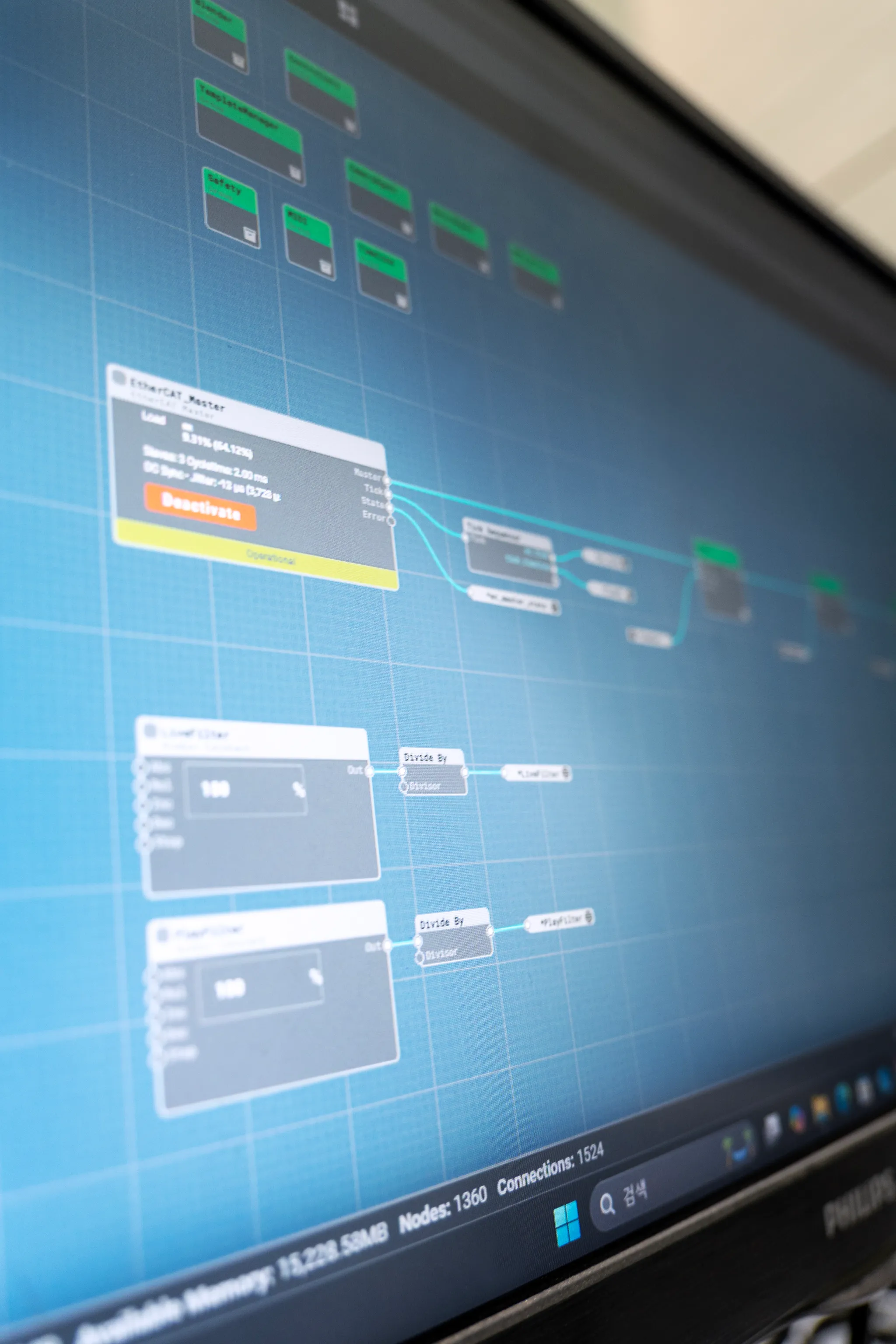

Device Manager | ยท Interconnect hardware devices and monitor health (middleware) |

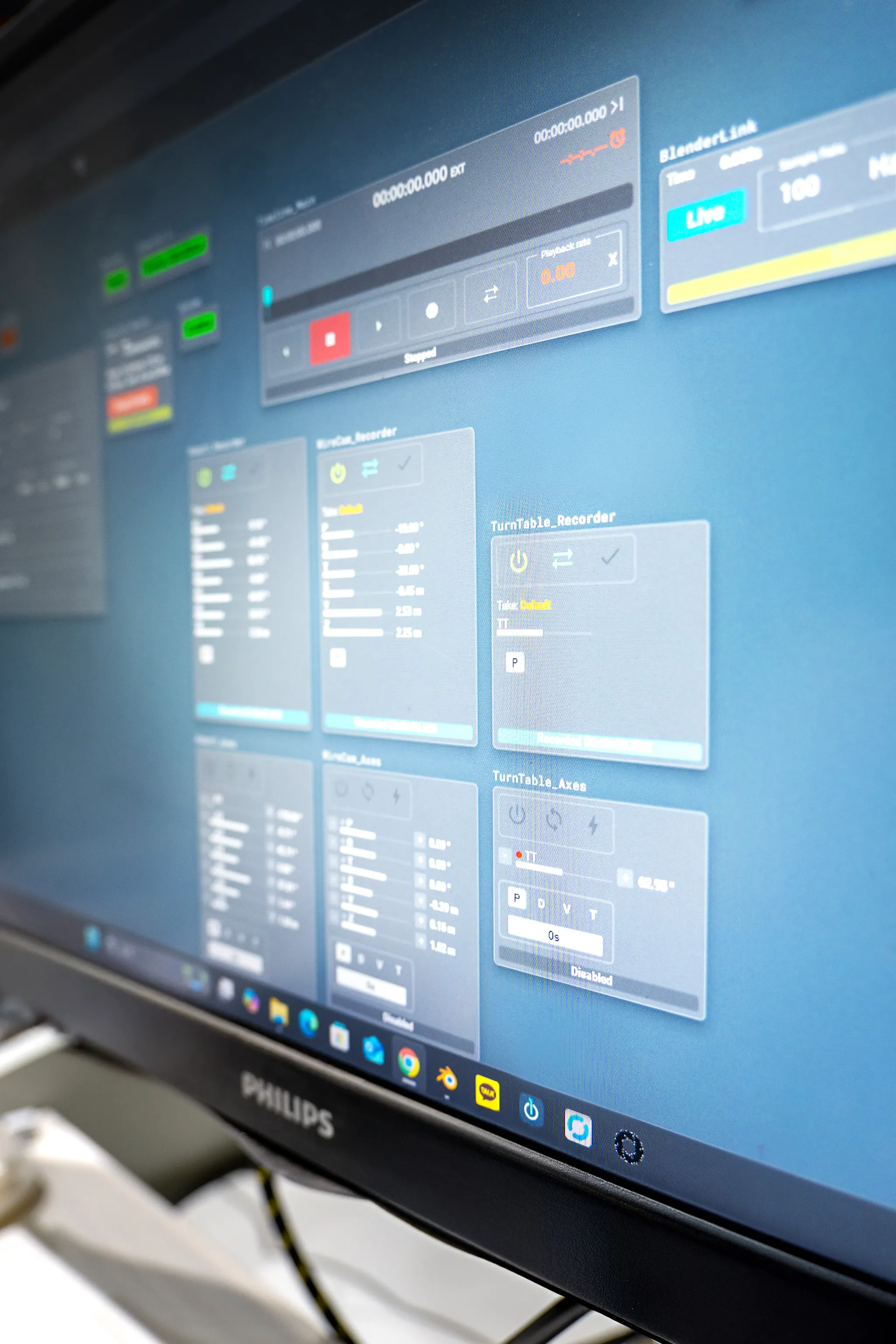

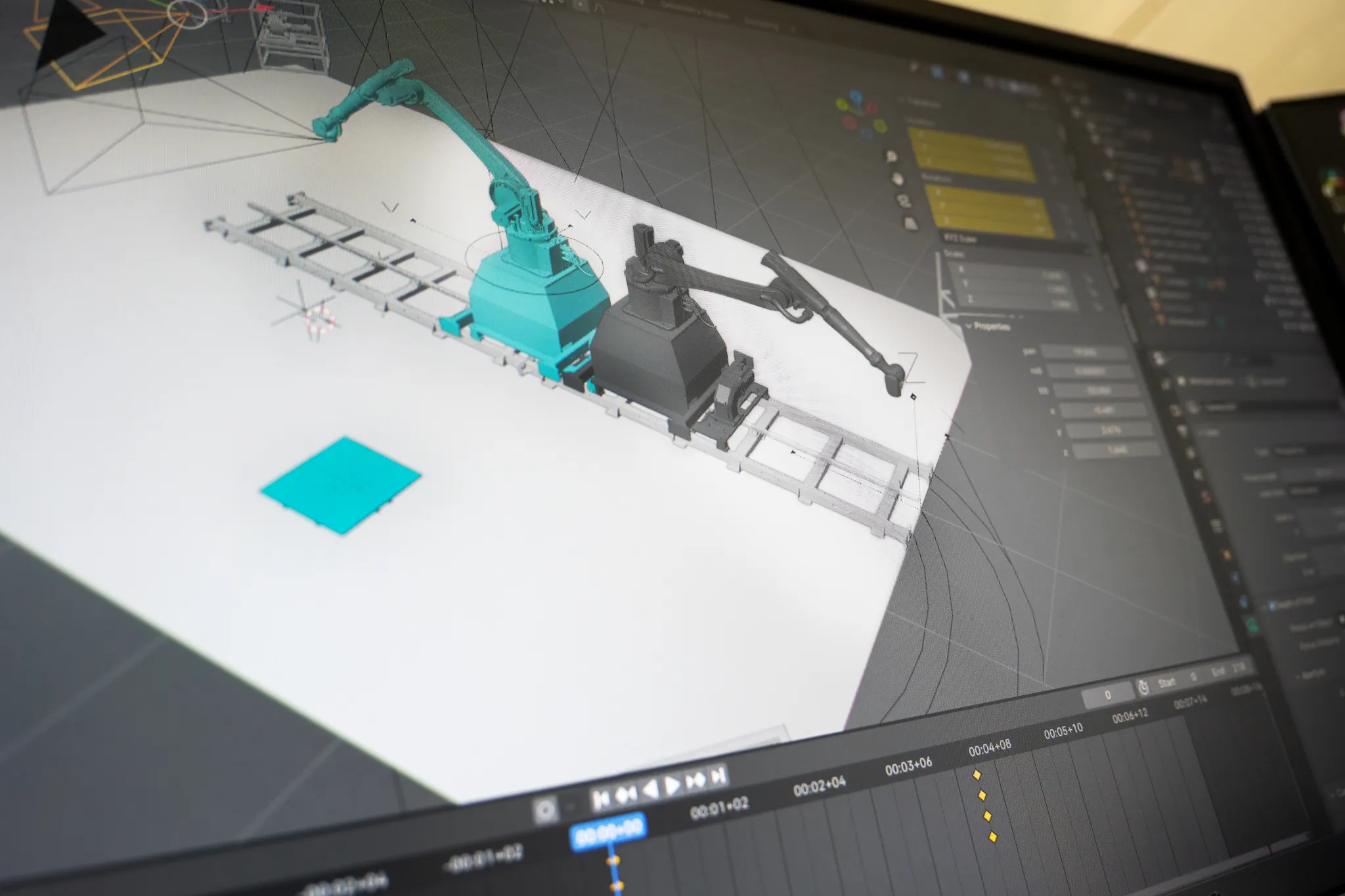

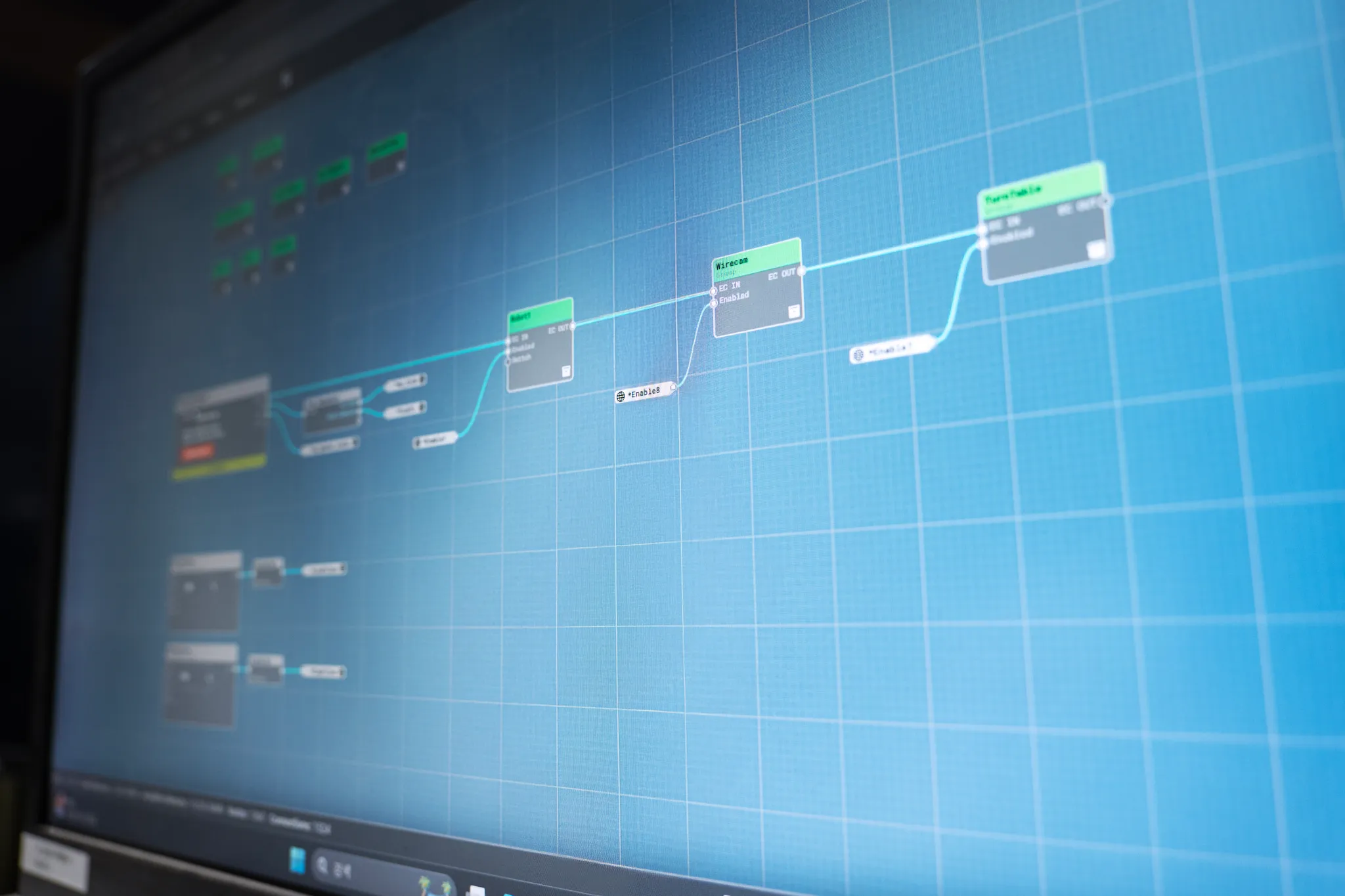

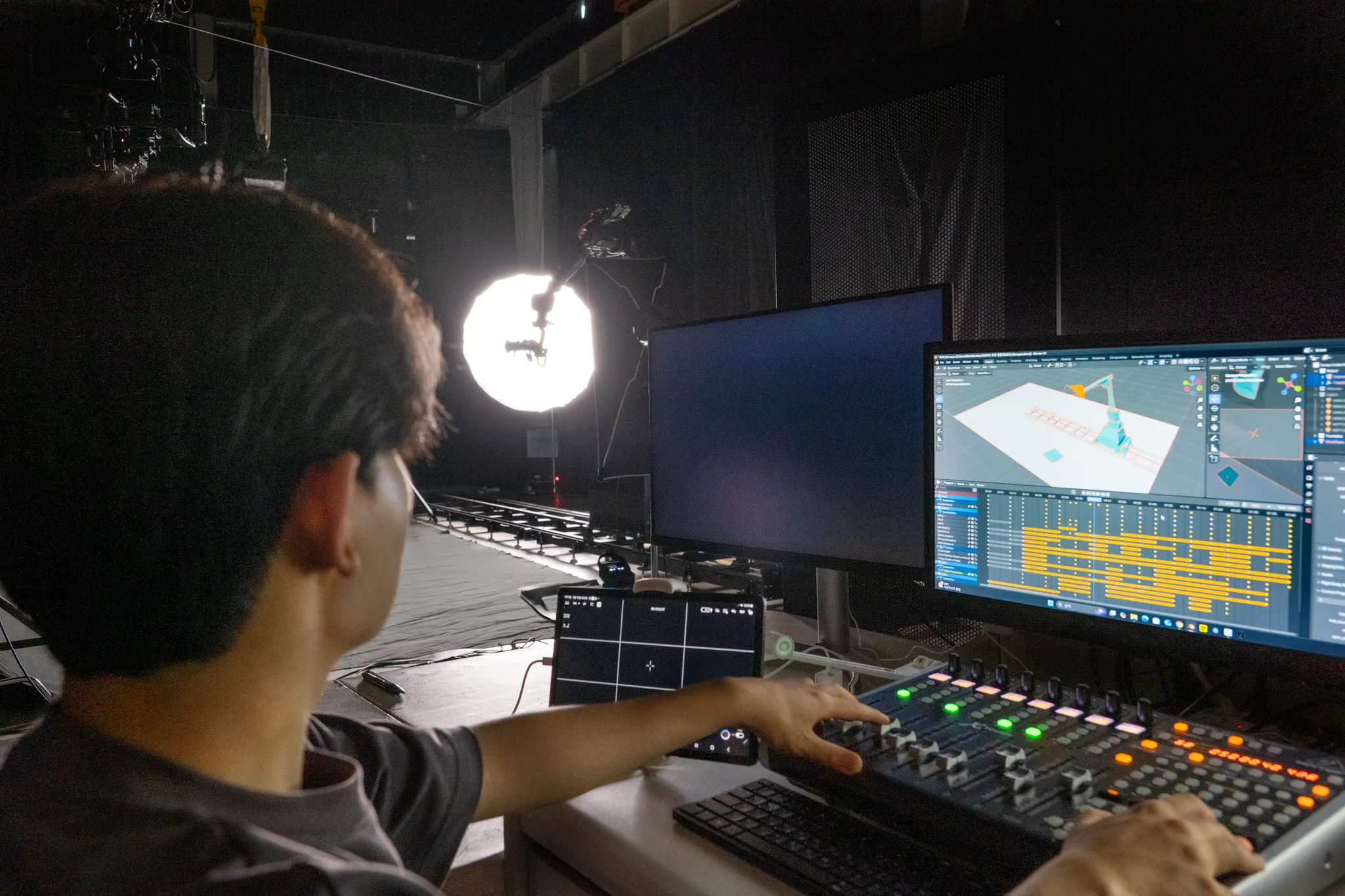

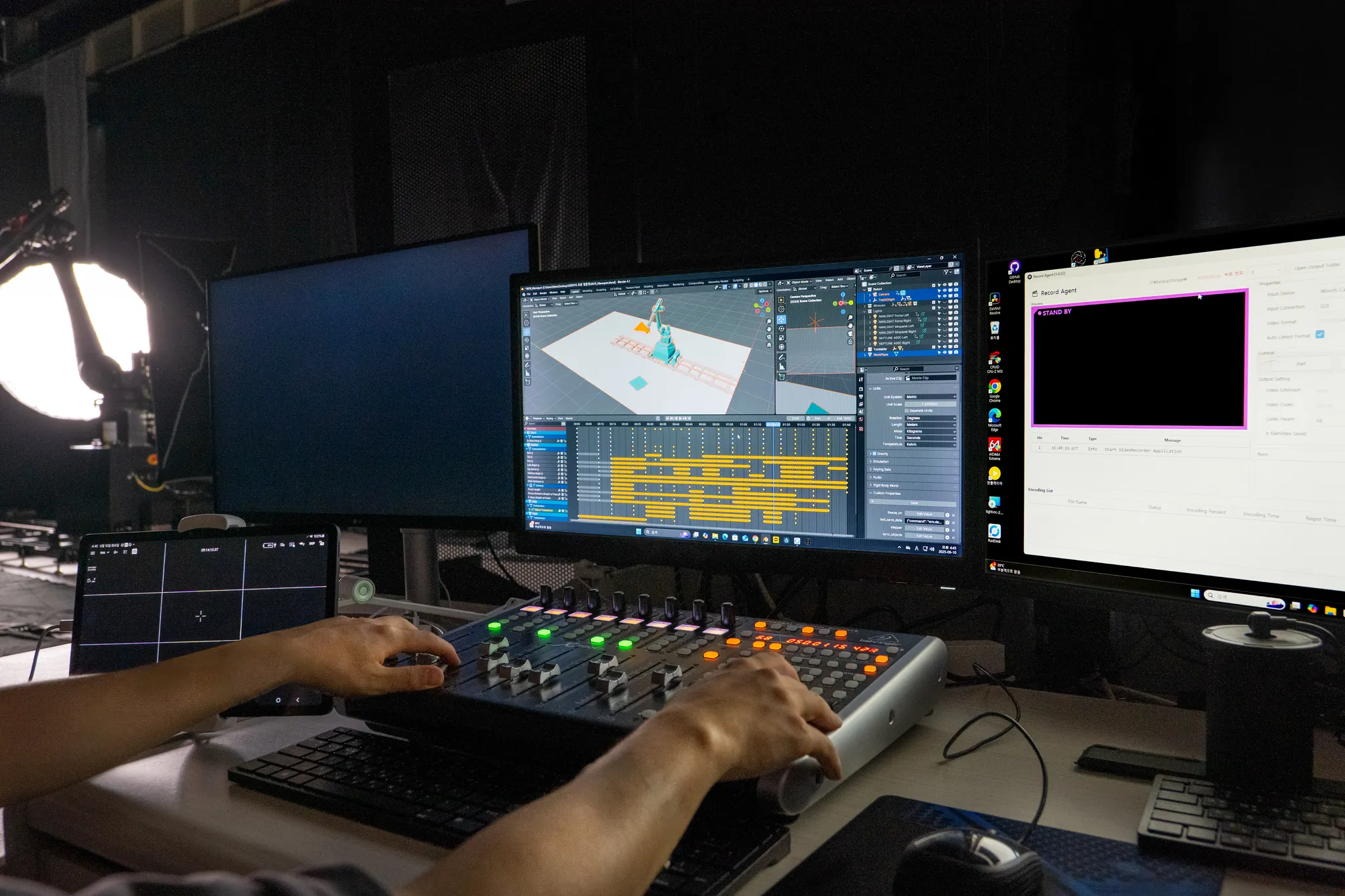

Motion Editor | ยท Users edit, specify, save, preview, etc variables on hardware devices based on timelines
ยท Provides real robot system and digital twin clones
ยท Real-time live interlocking or pre-programming (keyframing) motion and lighting setup possible |
Hardware
Module | Description |

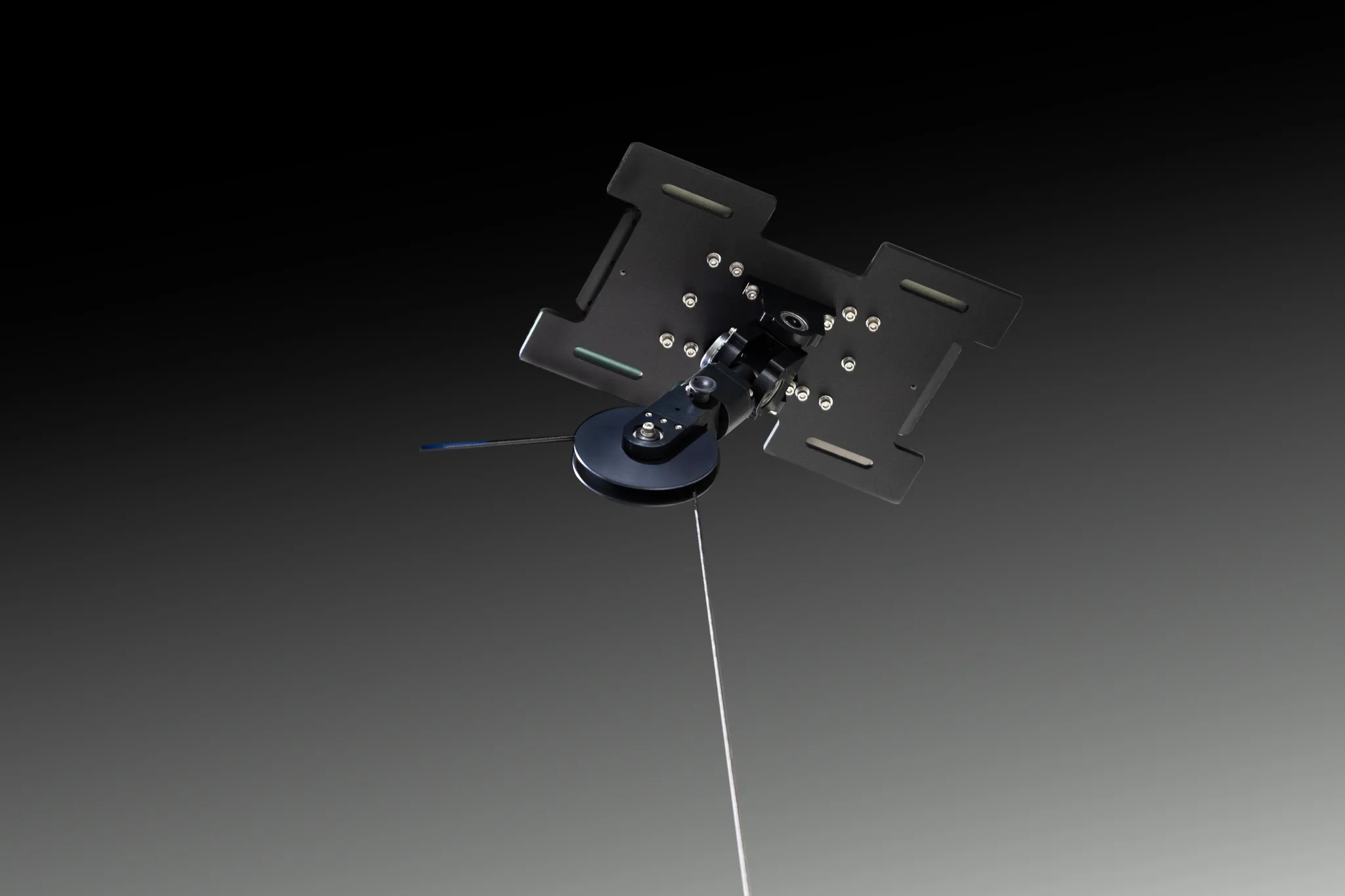

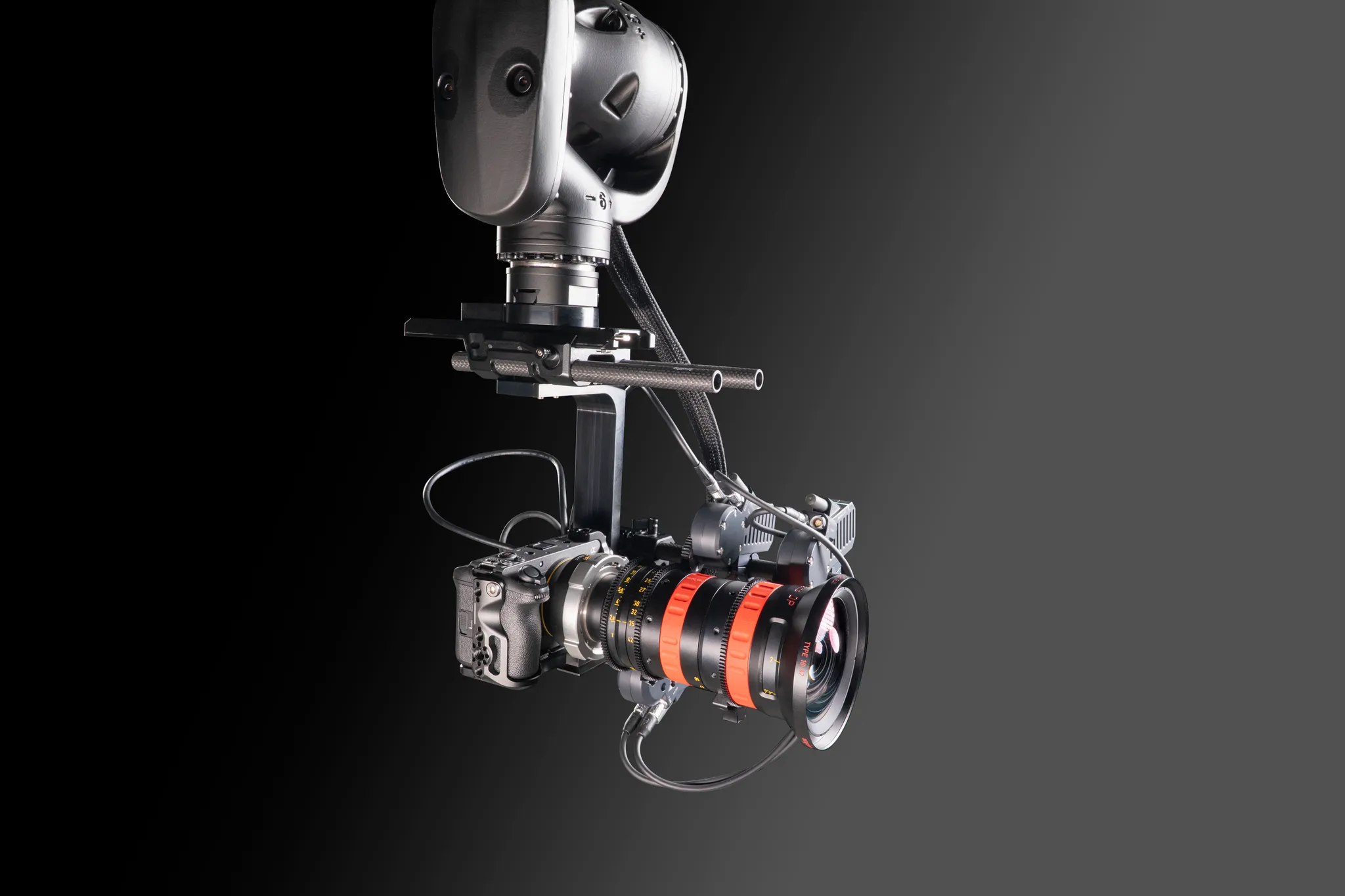

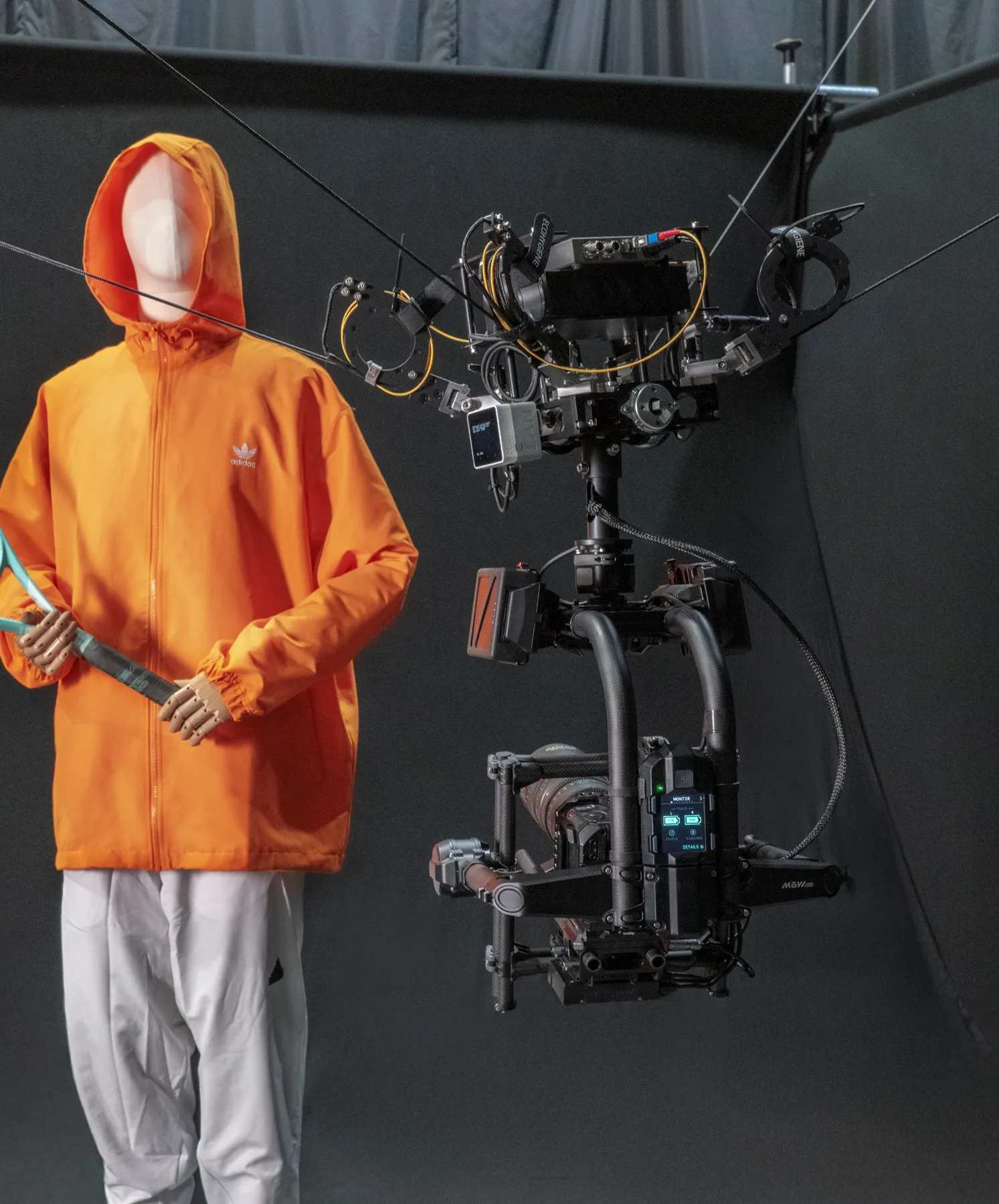

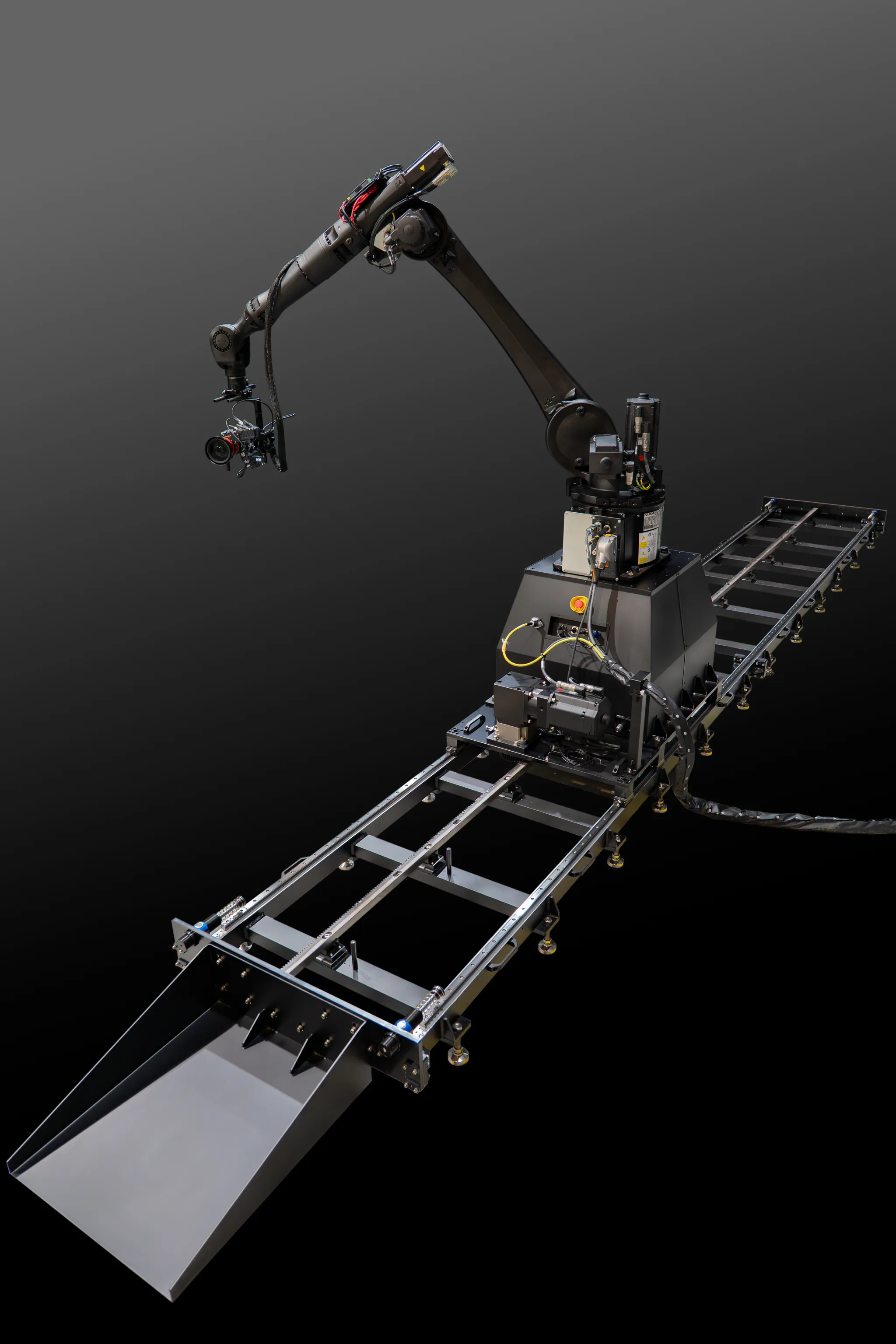

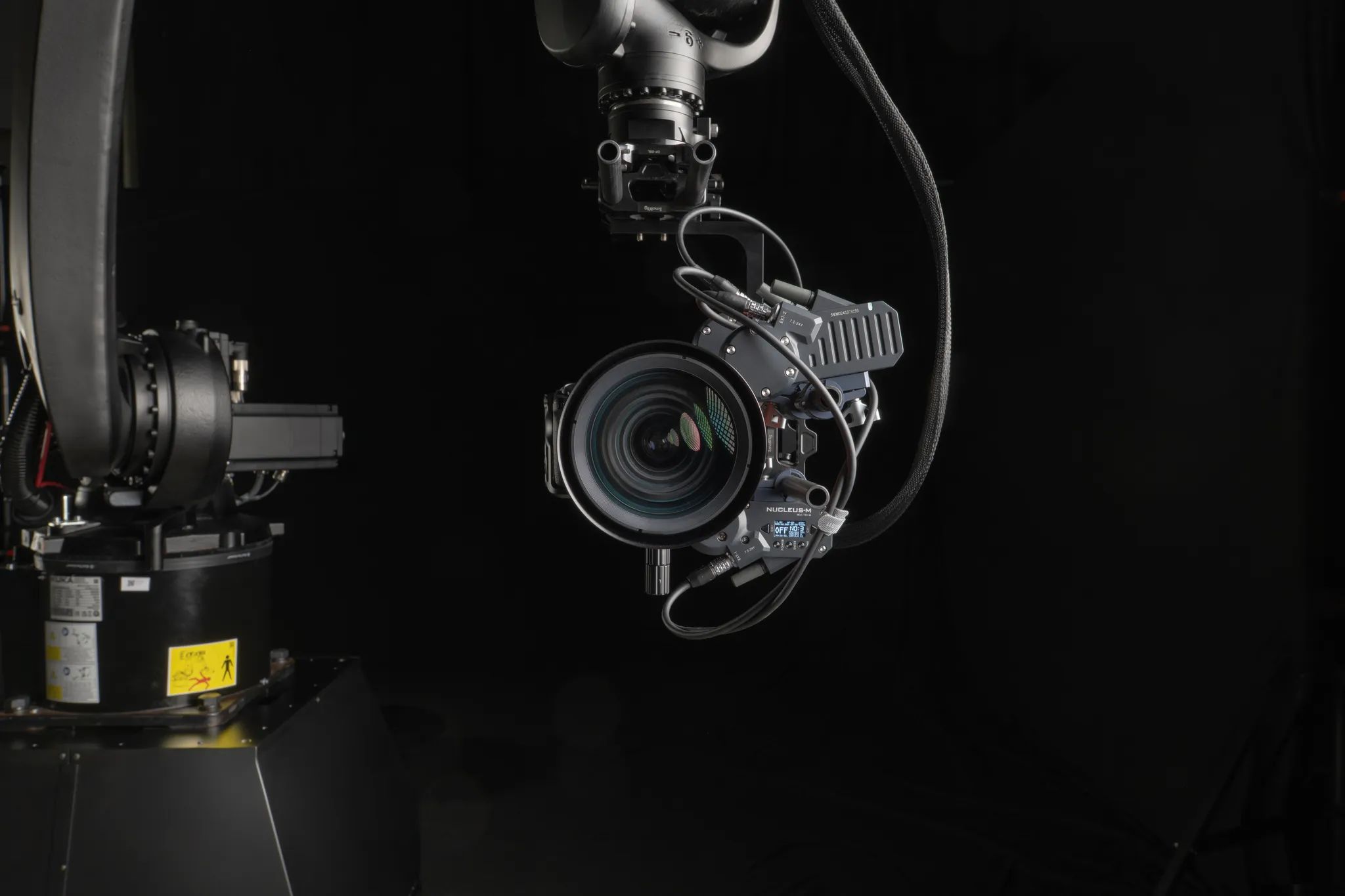

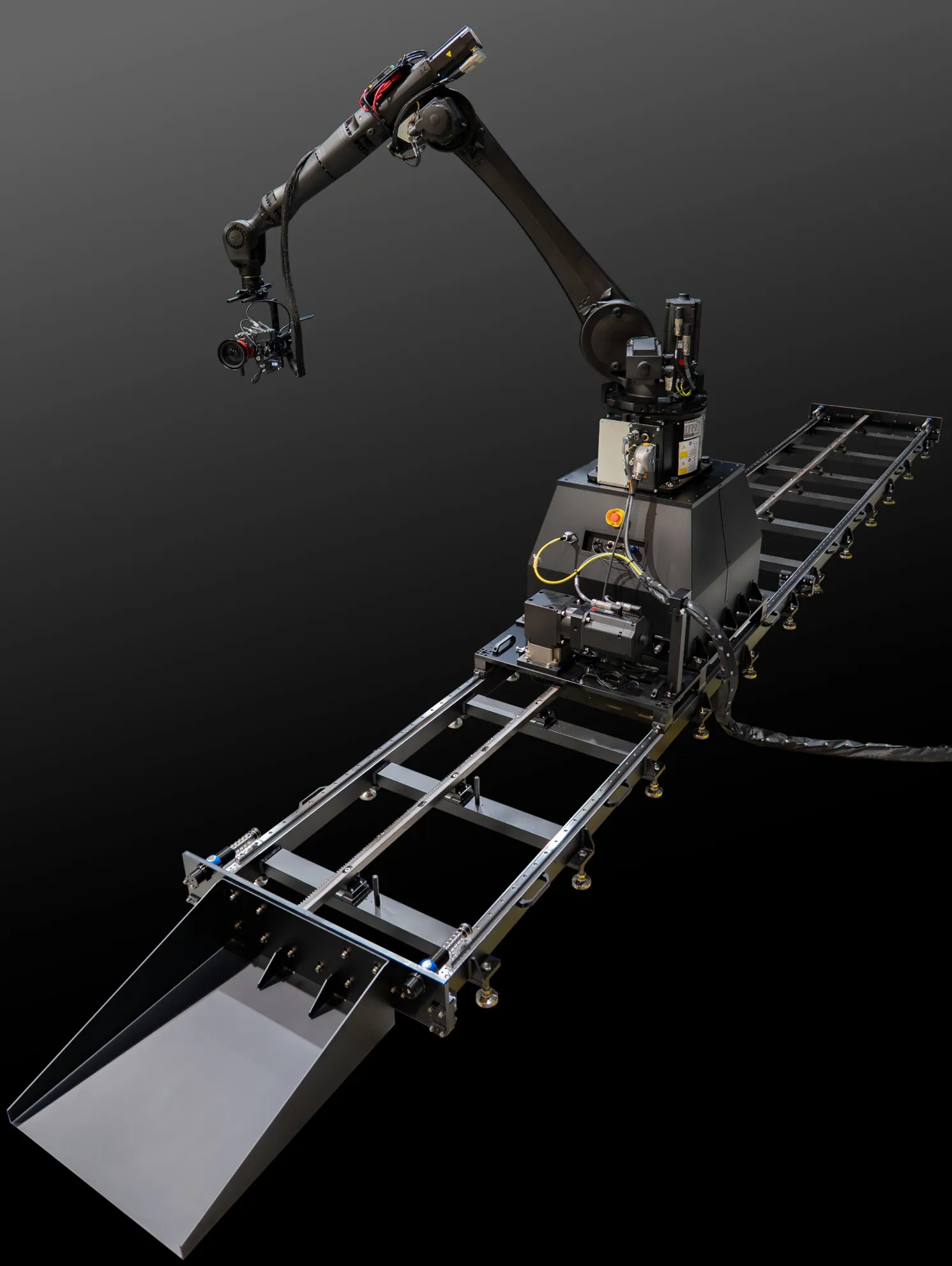

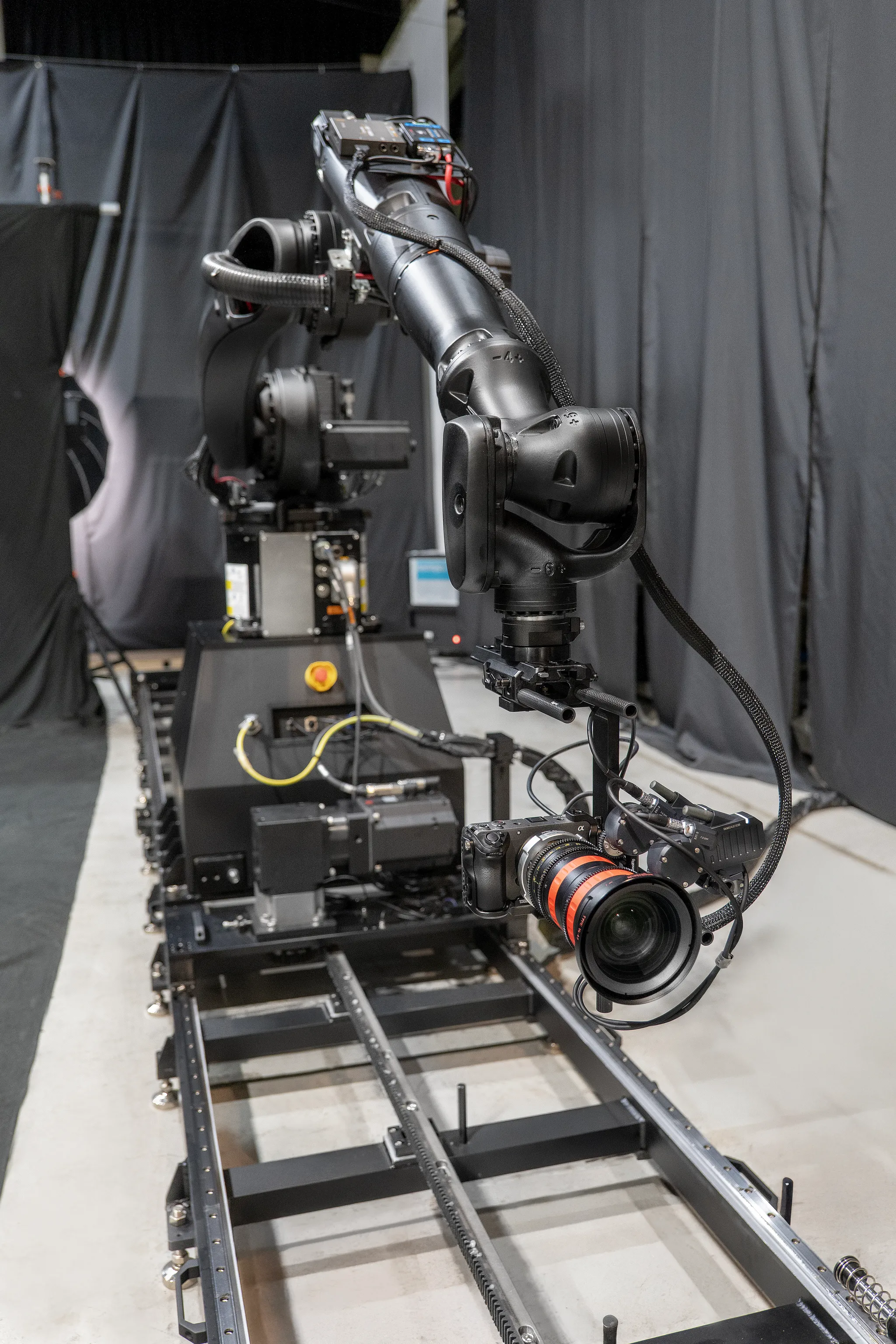

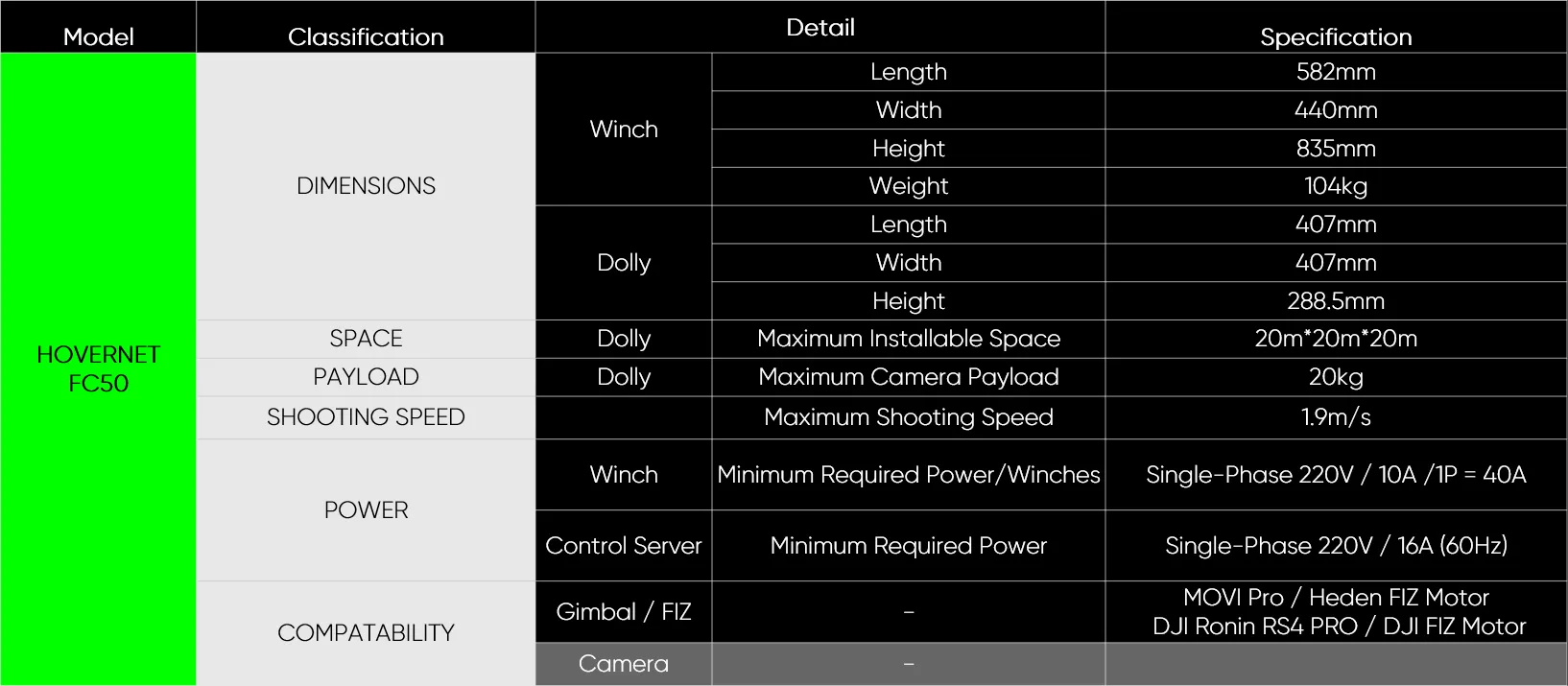

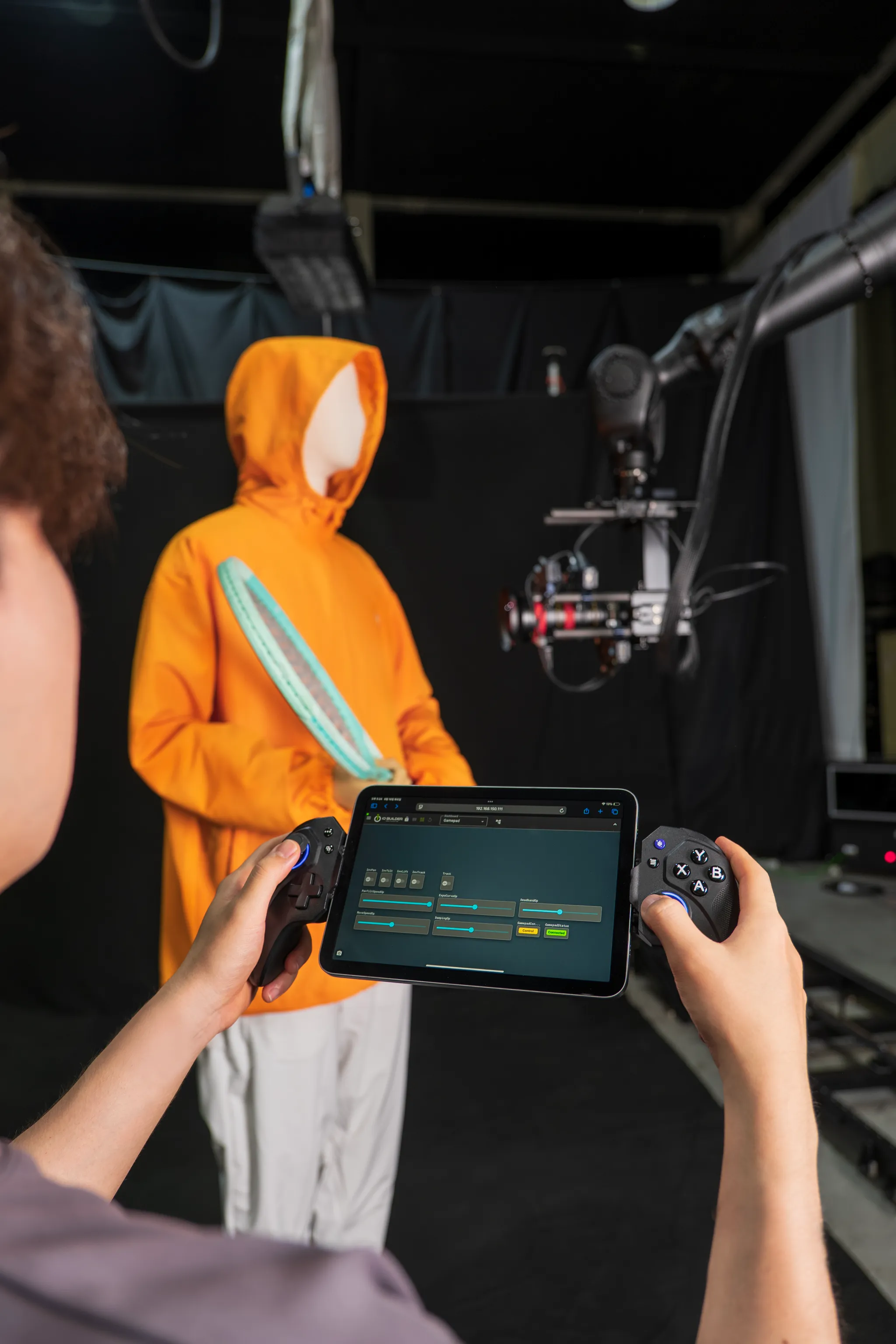

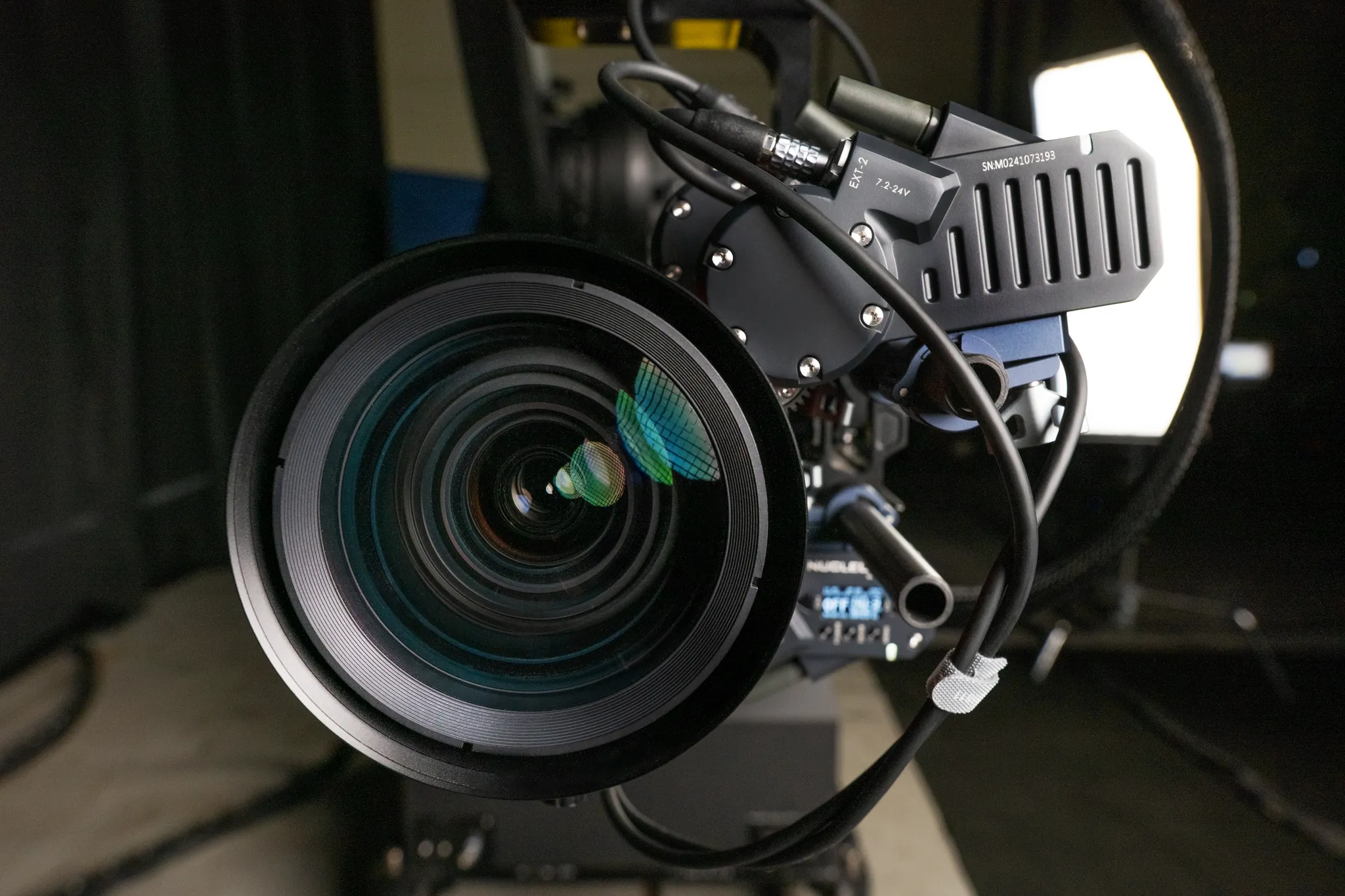

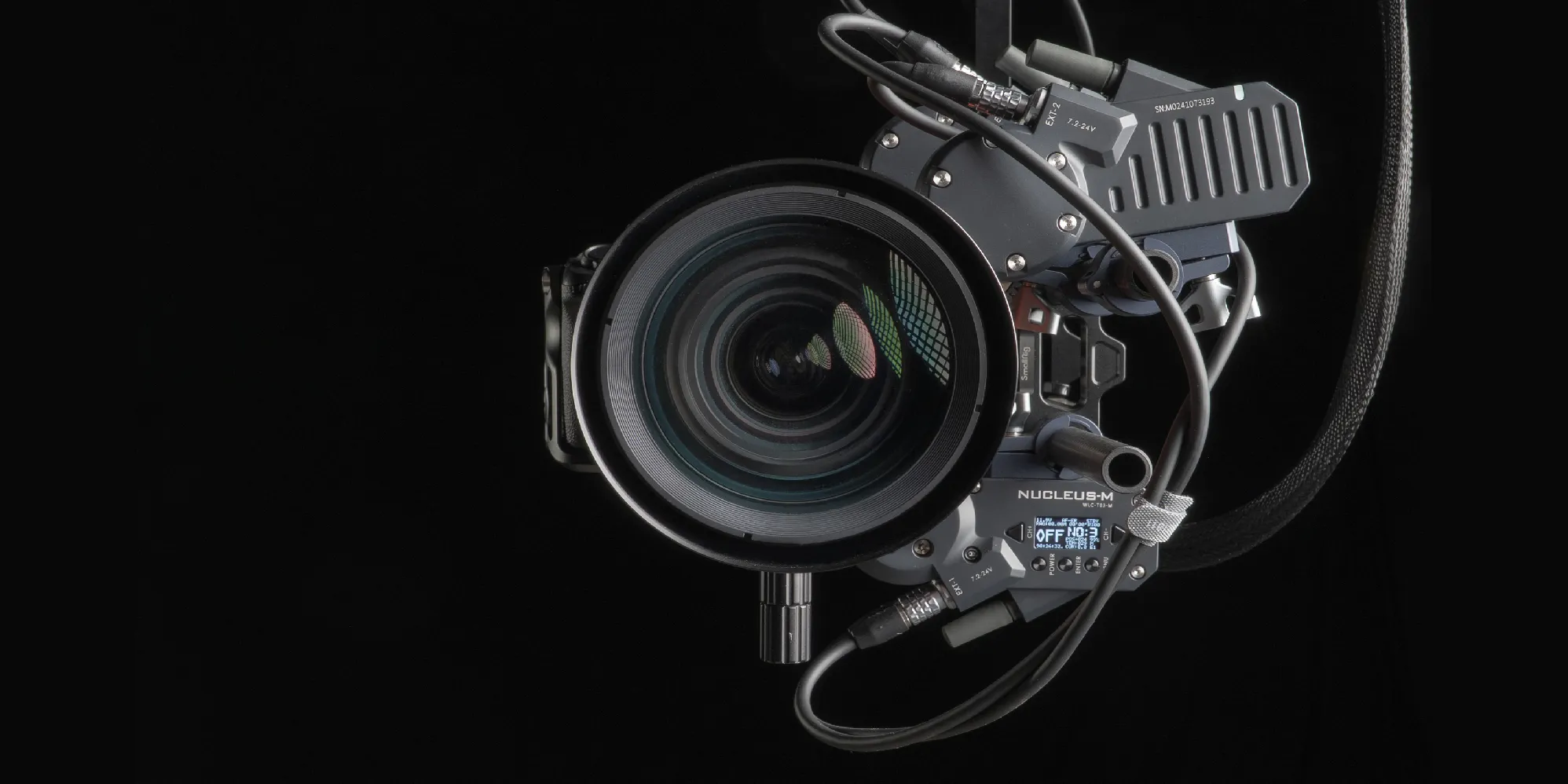

Camera Robot
(default-Flying)
*Choose between flying and robotics | ยท Specialized for dynamic angle imaging
ยท 3D spatial coordinates can be moved freely
ยท Live, pre-program control
ยท Full time-based motion control
ยท Motion connection with POST is possible
ยท FIZ system operating in conjunction with digital twin
ยท Camera and lens mount up to 6kg
ยท 12G SDI Uncompressed Optical Cable Video Transmission
ยท Unlimited filming is possible with power supply through wires
ยท Operating area that expands according to the size of the space available for installation
(Option)
ยท Camera support with remote controllable SDK
Sony FX3/FX30/FX6/FX9/Burano
BlackmagicDesign Pyxis, URSA Mini
Panasonic BS1H/BGH1,
RED Komodo/V-Raptor |
Lighting Robot | ยท With linear track (auxiliary)
ยท Front and back / height / fan / tiltable 4-axis spot LED lighting robot (1200w) 2 sets
ยท Full digital twin operation control in real time or key framing
ยท Complete brightness, color temperature, RGBW color control, continuous color change with artNET, DMX512
(Option)
ยท Besides lighting, it can also be used as a camera robot
(Camera mountable after removing the lighting)
ยท Additional DMX lighting in addition to basic lighting |

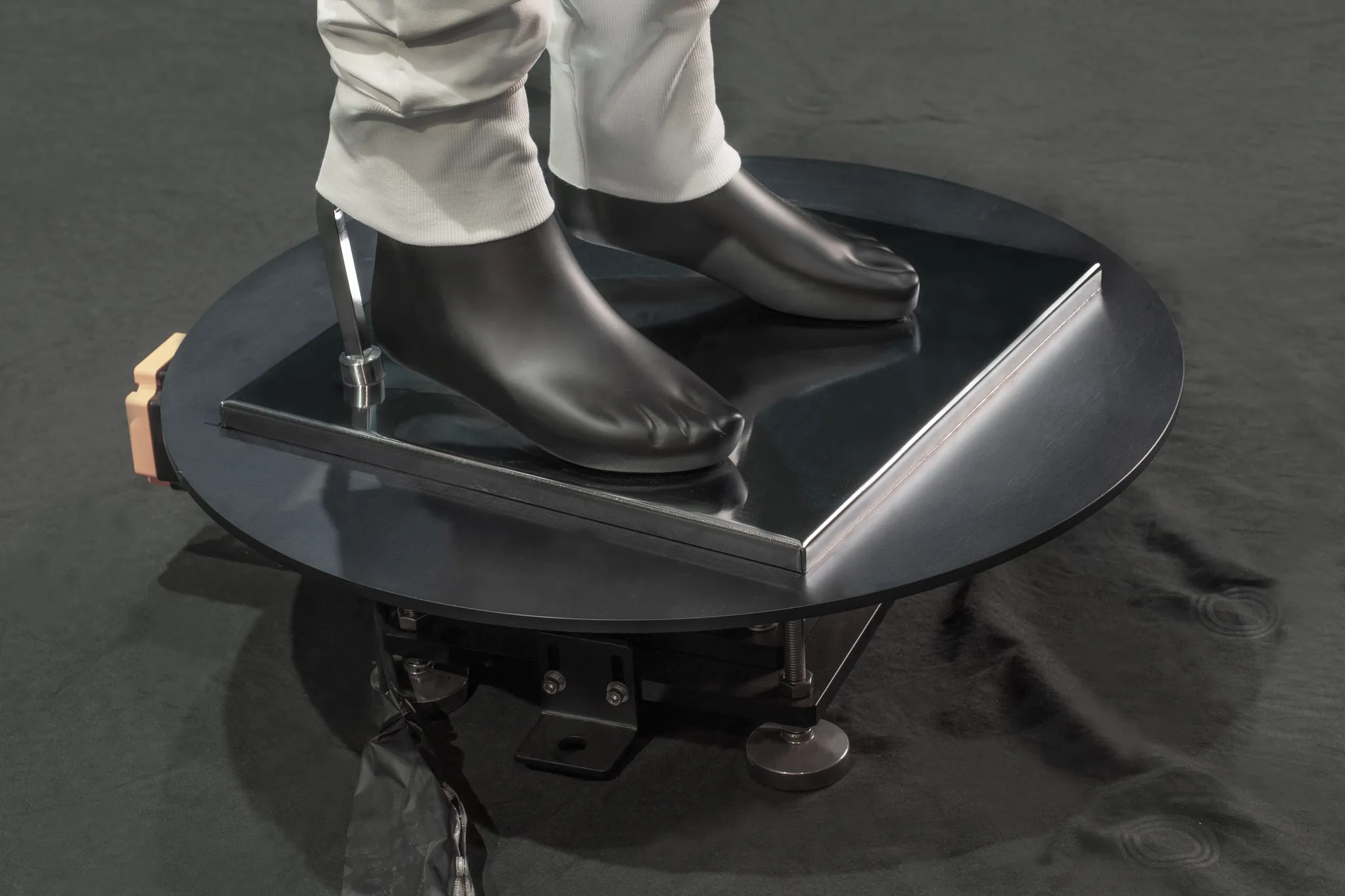

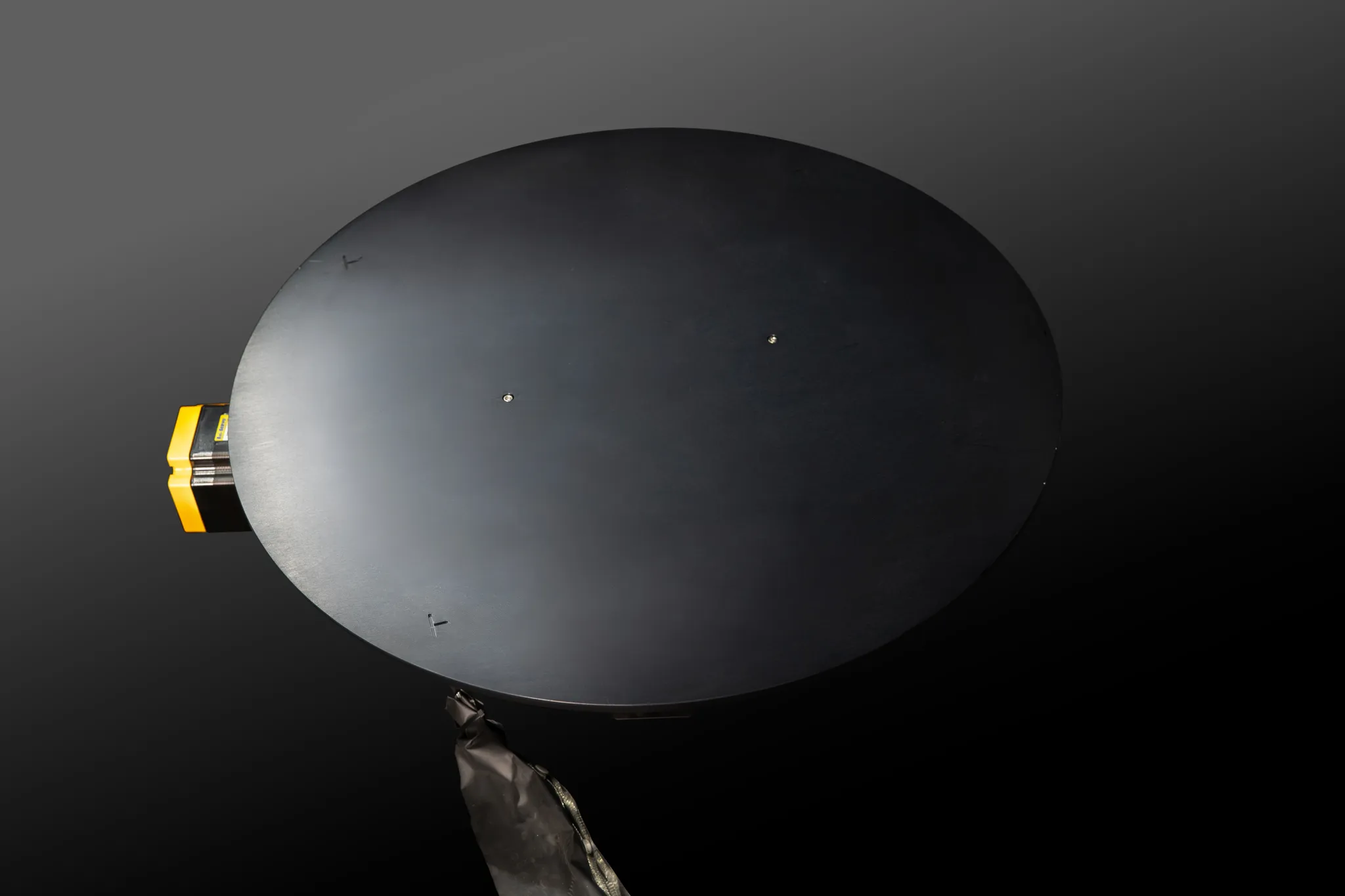

Turn table Robot | ยท clockwise/counterclockwise rotation
ยท Max. 300kg loadable
ยท Rotation precision 0.001 degrees
ยท Full digital twin operation control in real time or key framing
ยท Elaborate horizontal setting
(Option)
ยท Universal Product Mount Jig |

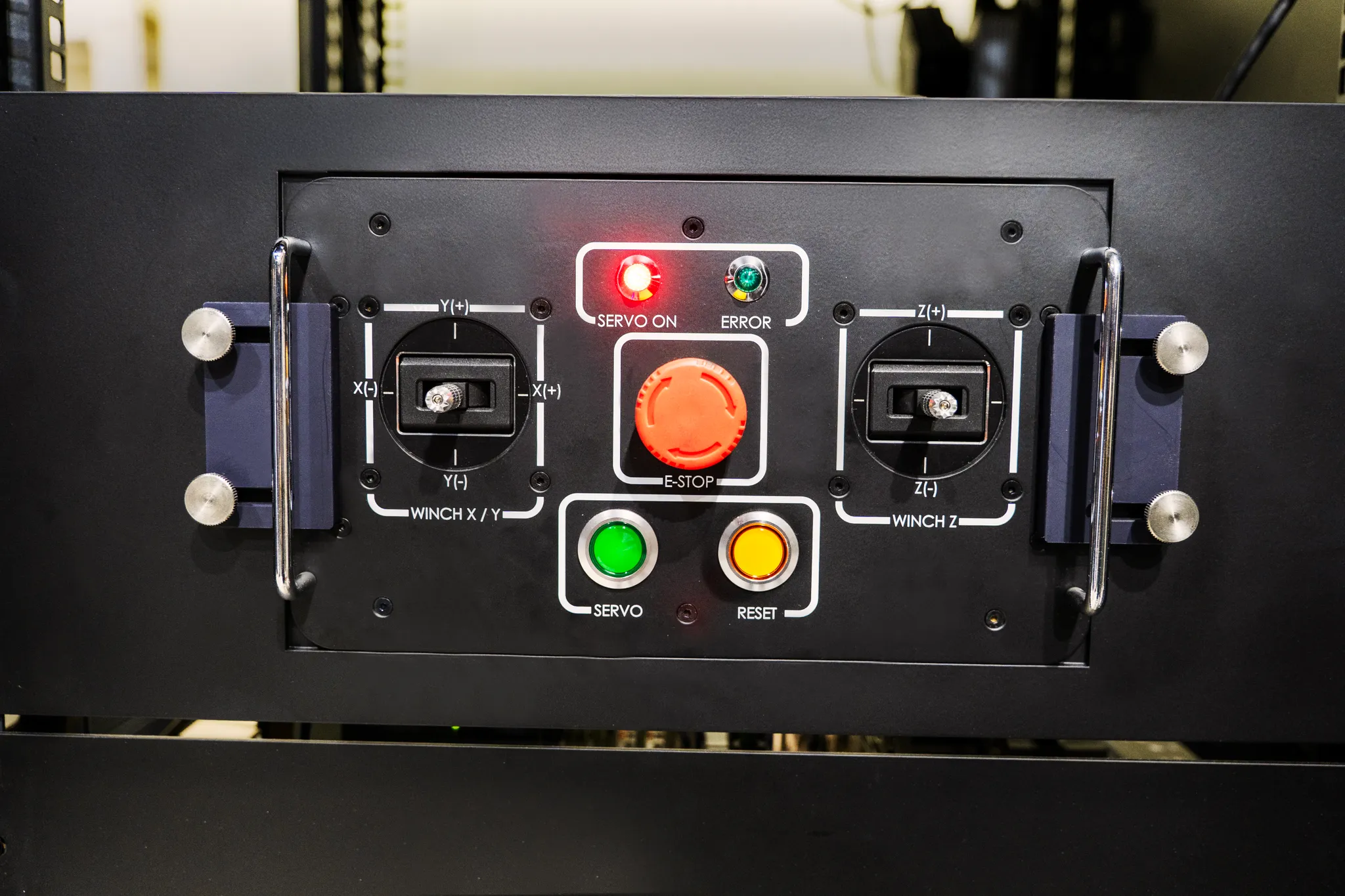

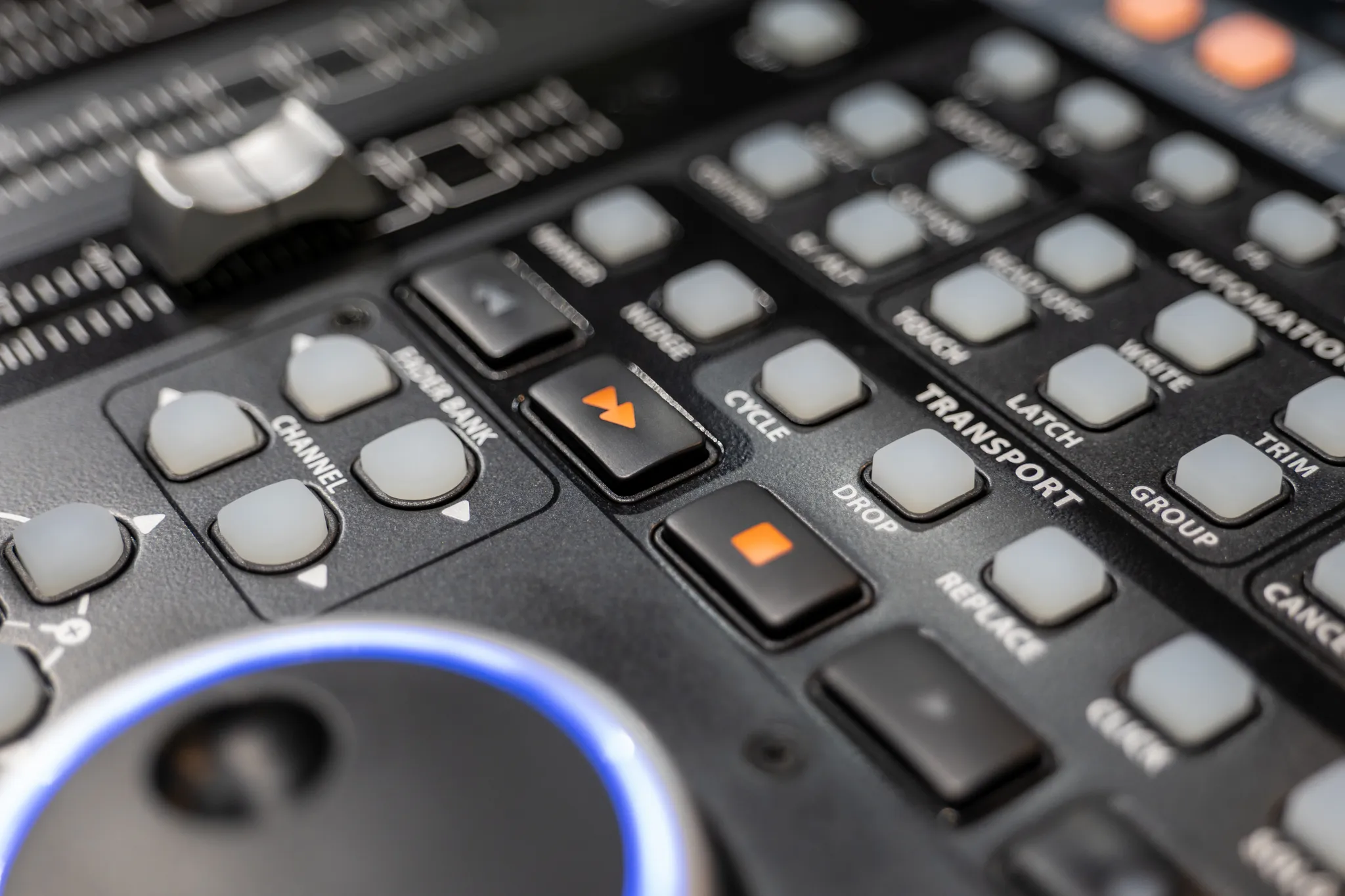

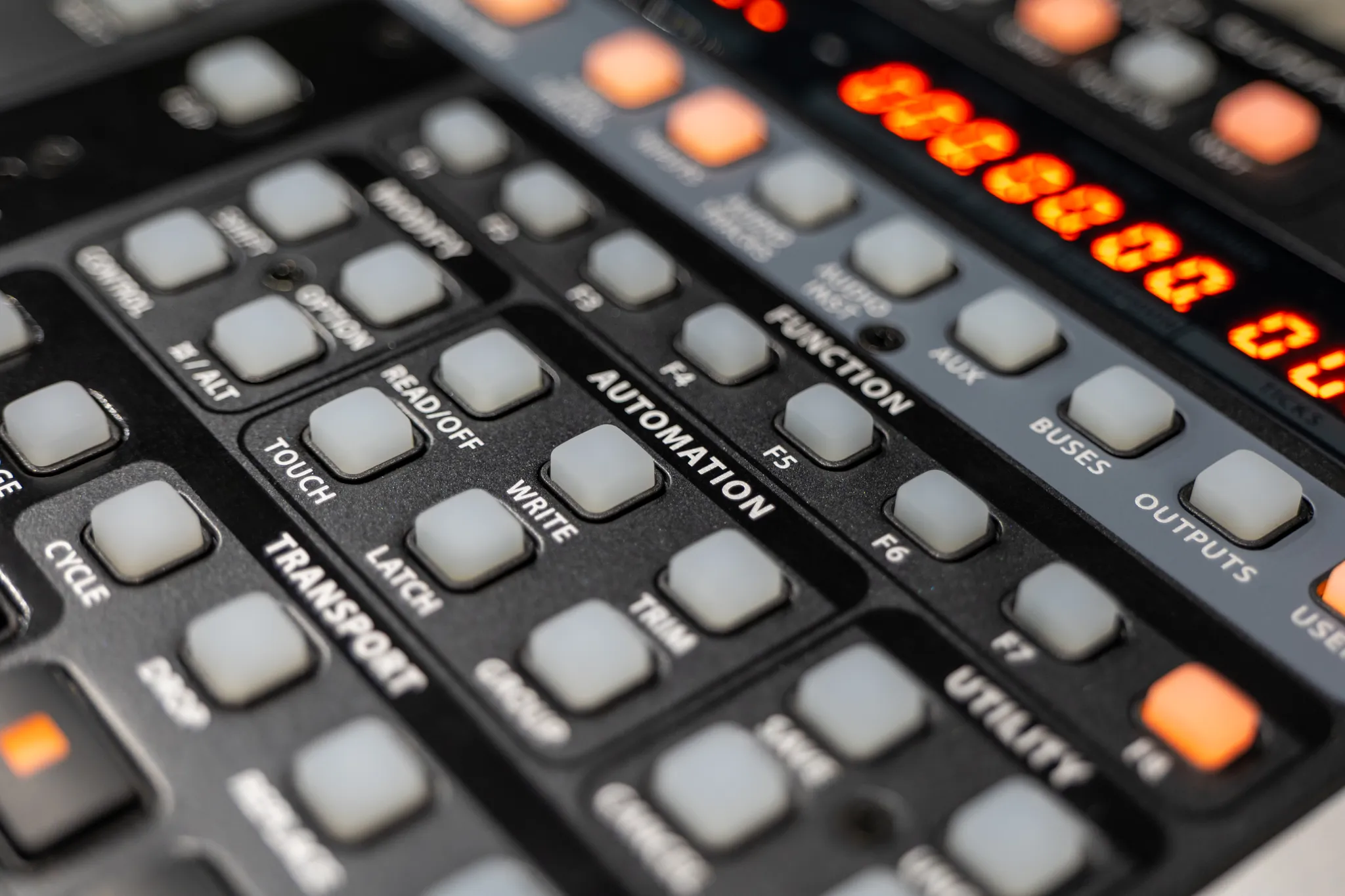

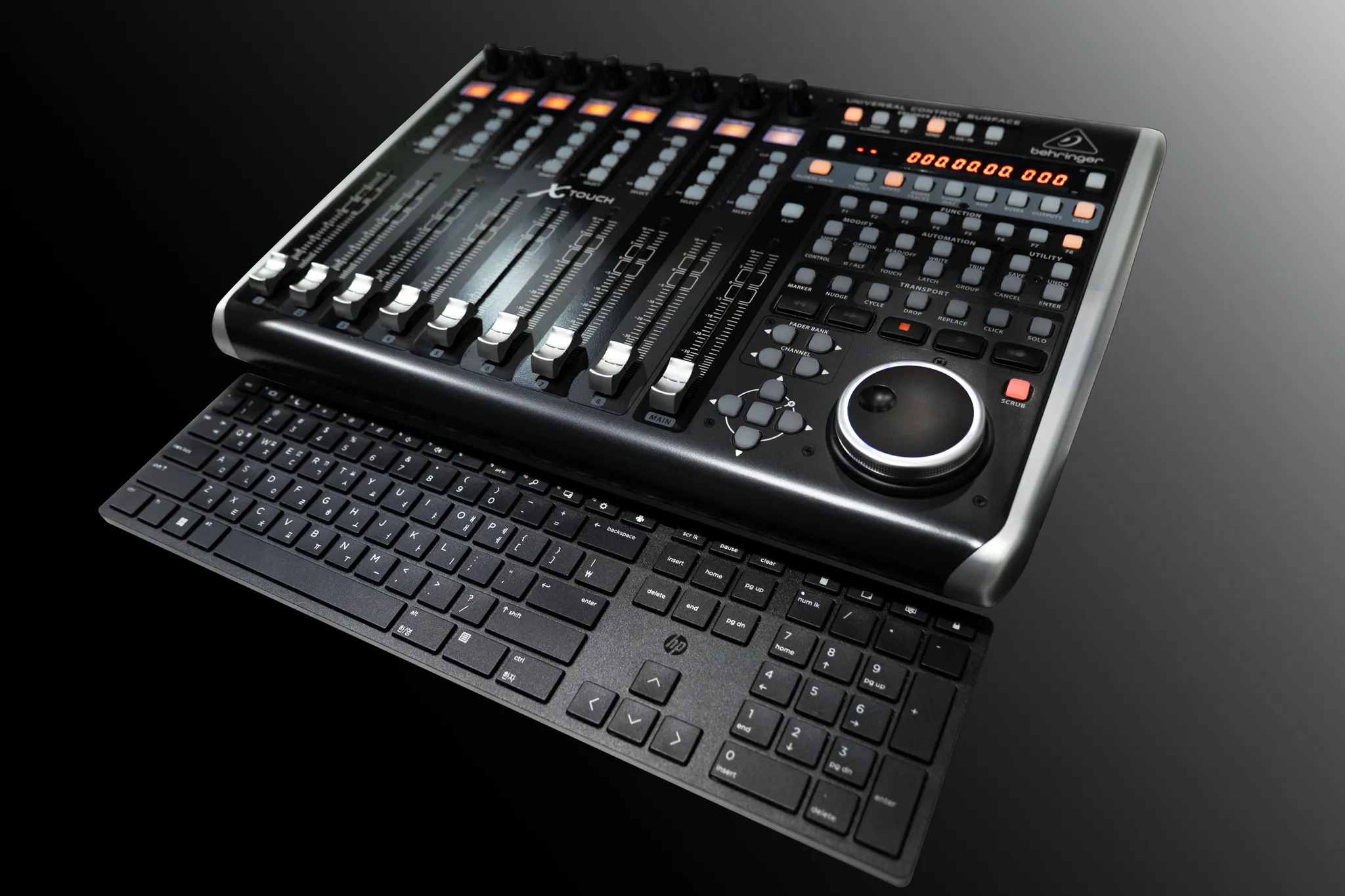

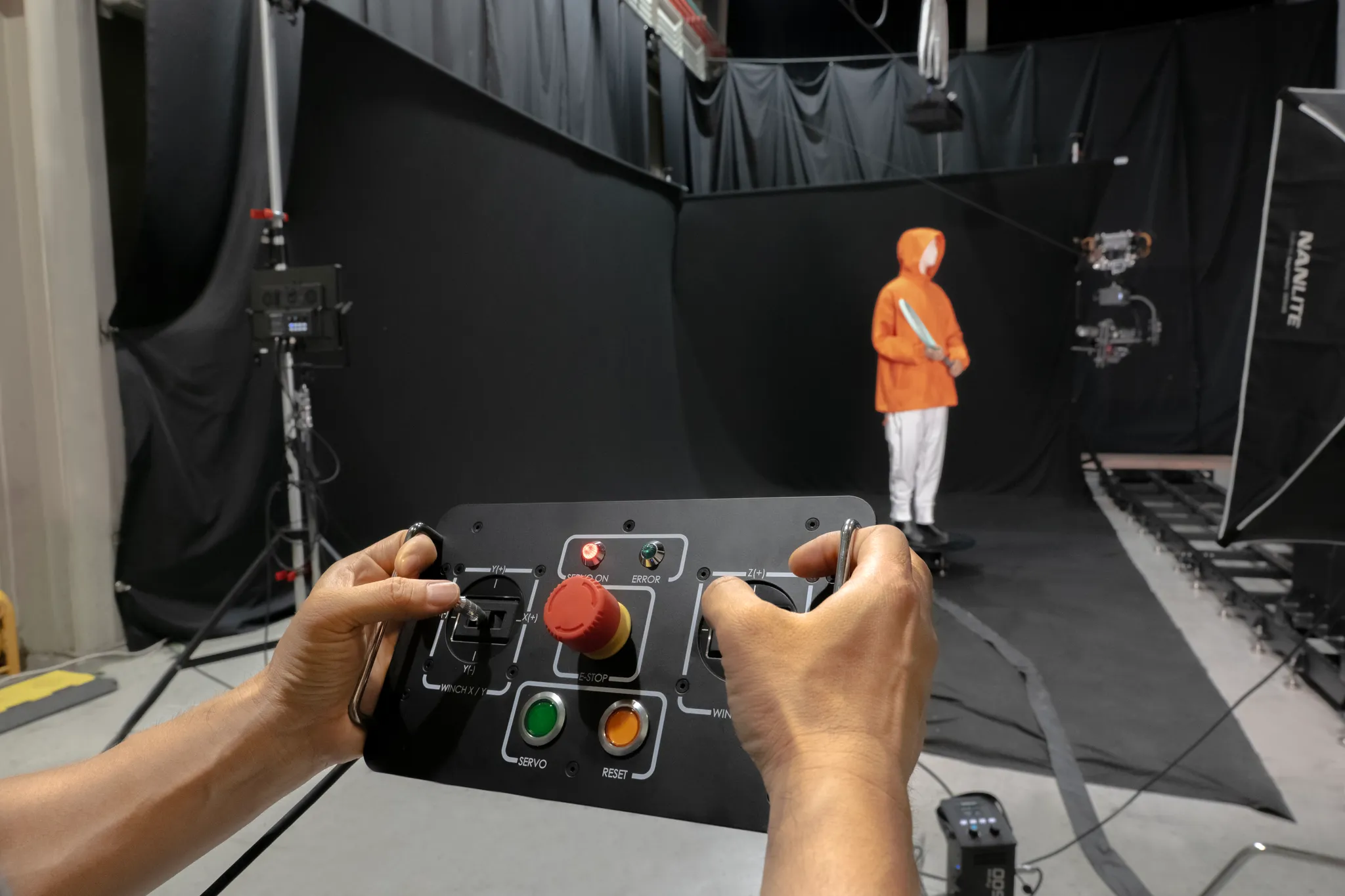

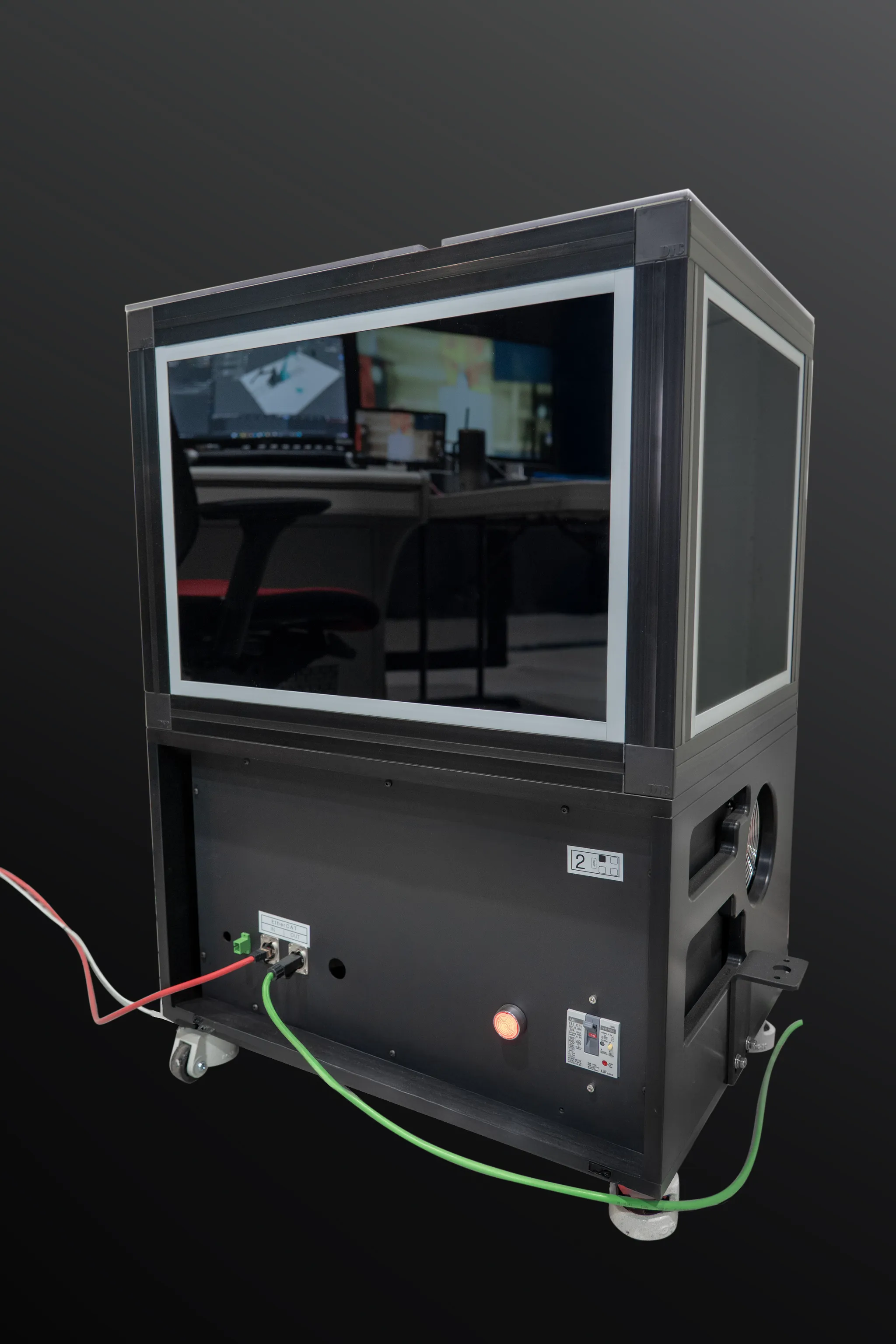

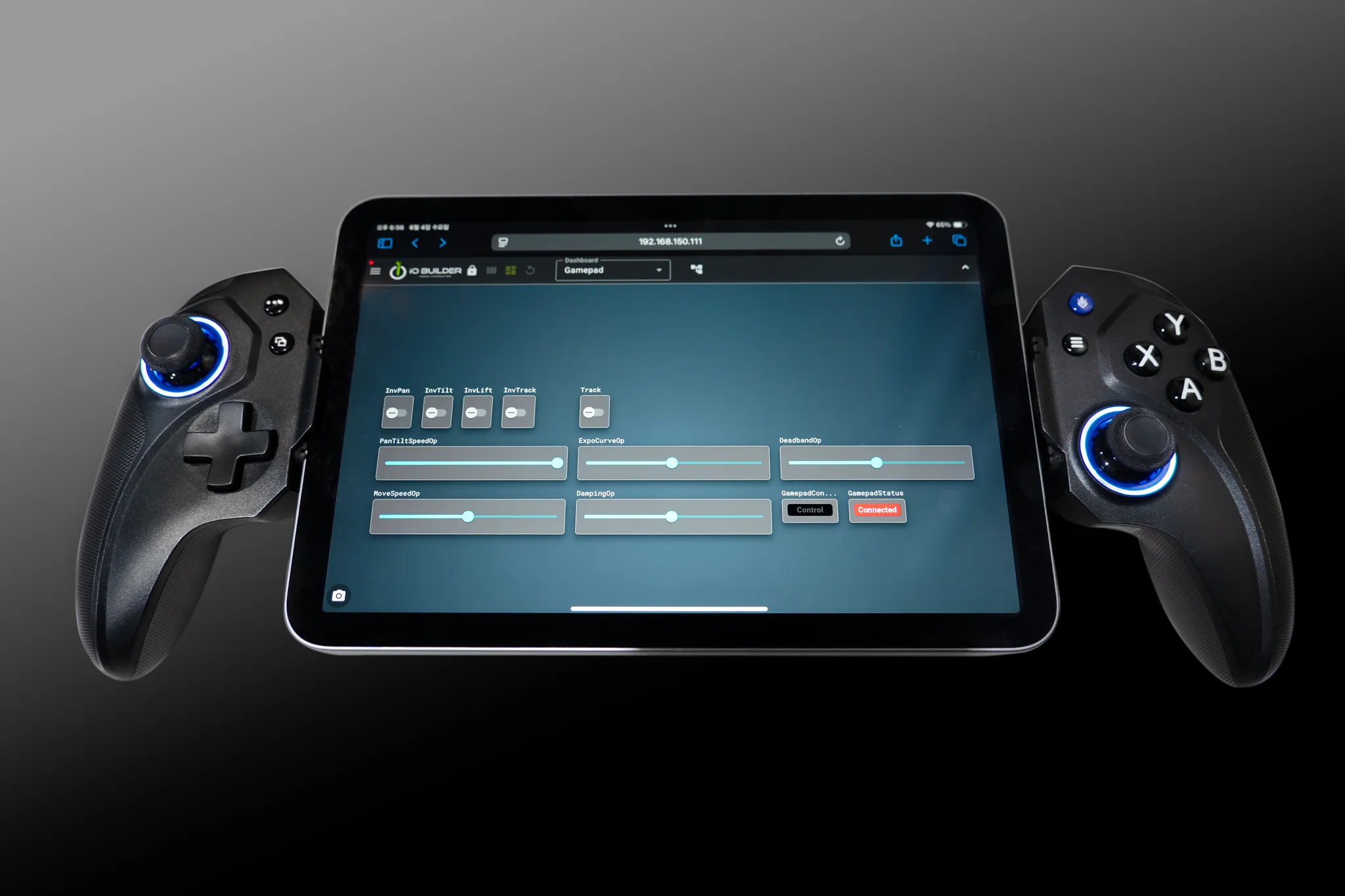

CTRL Box | ยท Server Rack/Cable/Network Device/User Monitor/Keyboard/Mouse/Control Stick
(Option)
ยท Portable rack |
Safety
Inter Lock | ยท Safety Door Interlock System
(Option)
ยท Flying Camera Robot Collision Prevention Safety System |
Optional Plan
AI
AI Application
Module | Description |
AI autoswitching (optional) | ยท For videos, perform live switching by analyzing multi-camera input in real time with AI
(Option)
ยท AI camera, AI analysis server, AI switching S/W |
AI-generated background (optional) | ยท Allows users to enter a prompt to create a background for the green screen
(Option)
ยท Chromaquier, Multi-Channel Video Suite, Video Storage and Streaming Server |
Automation
Auto-editing output of video
Module | Description |
Automatic video editing output module | ยท When selecting a shooting preset, the linked automatic editing is called and immediately outputs an image with editing, DI, and some CG immediately after the shooting is finished
(Option)
ยท Media server for auto editing, auto editing agent S/W, custom editing S/W |
Checklist
* Without camera, lens, etc.
* Without background such as green screen, constructed directly by the buyer.

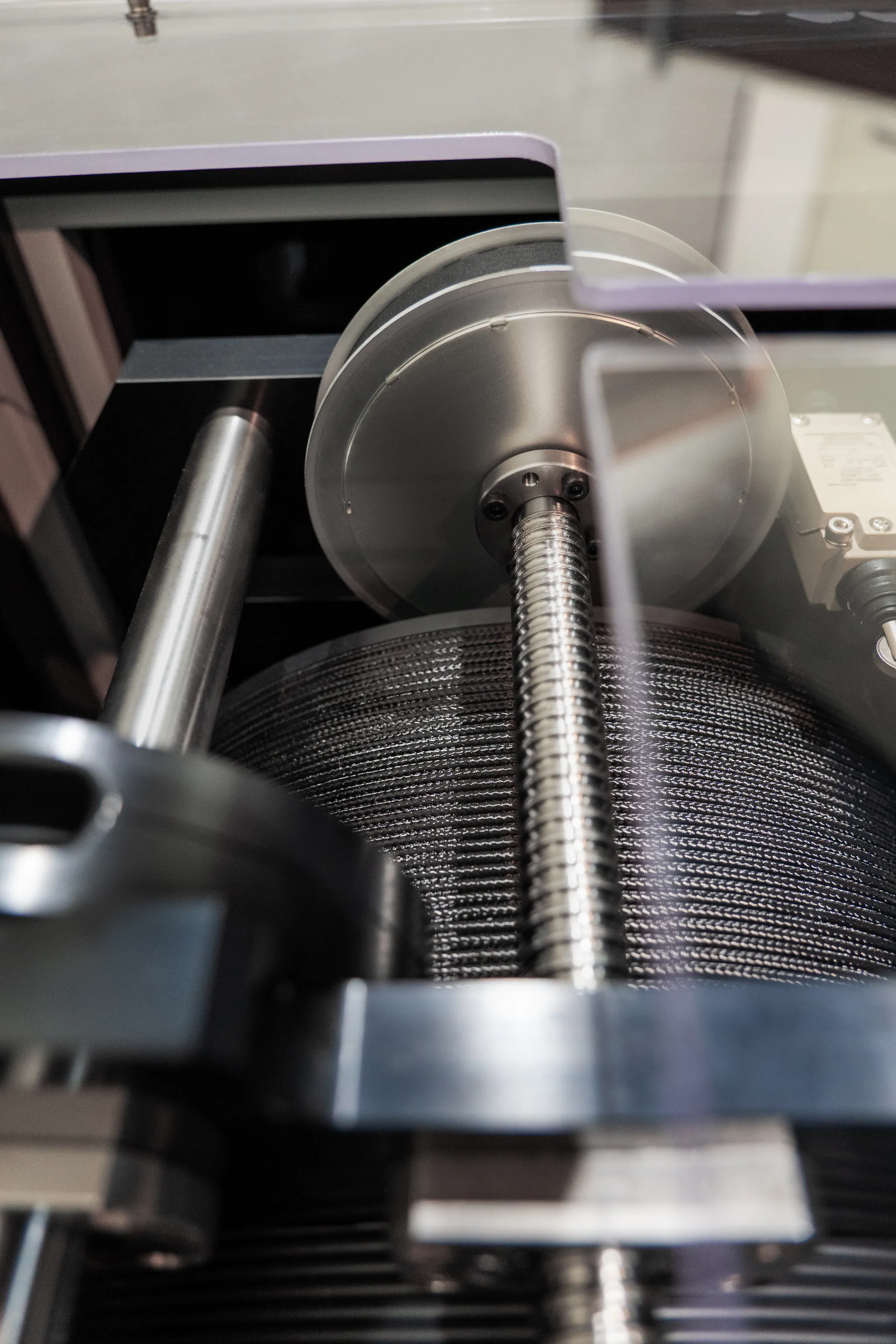

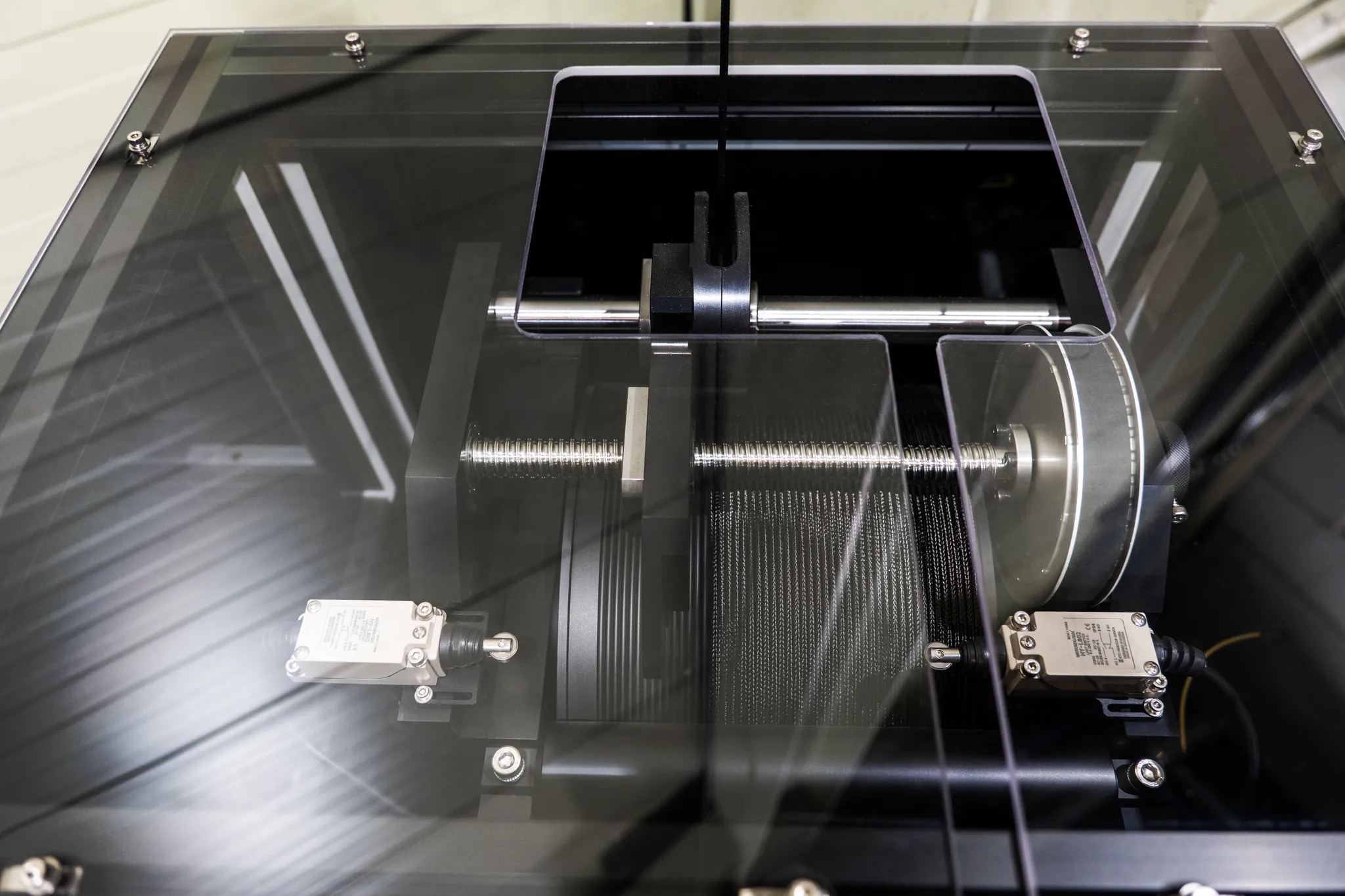

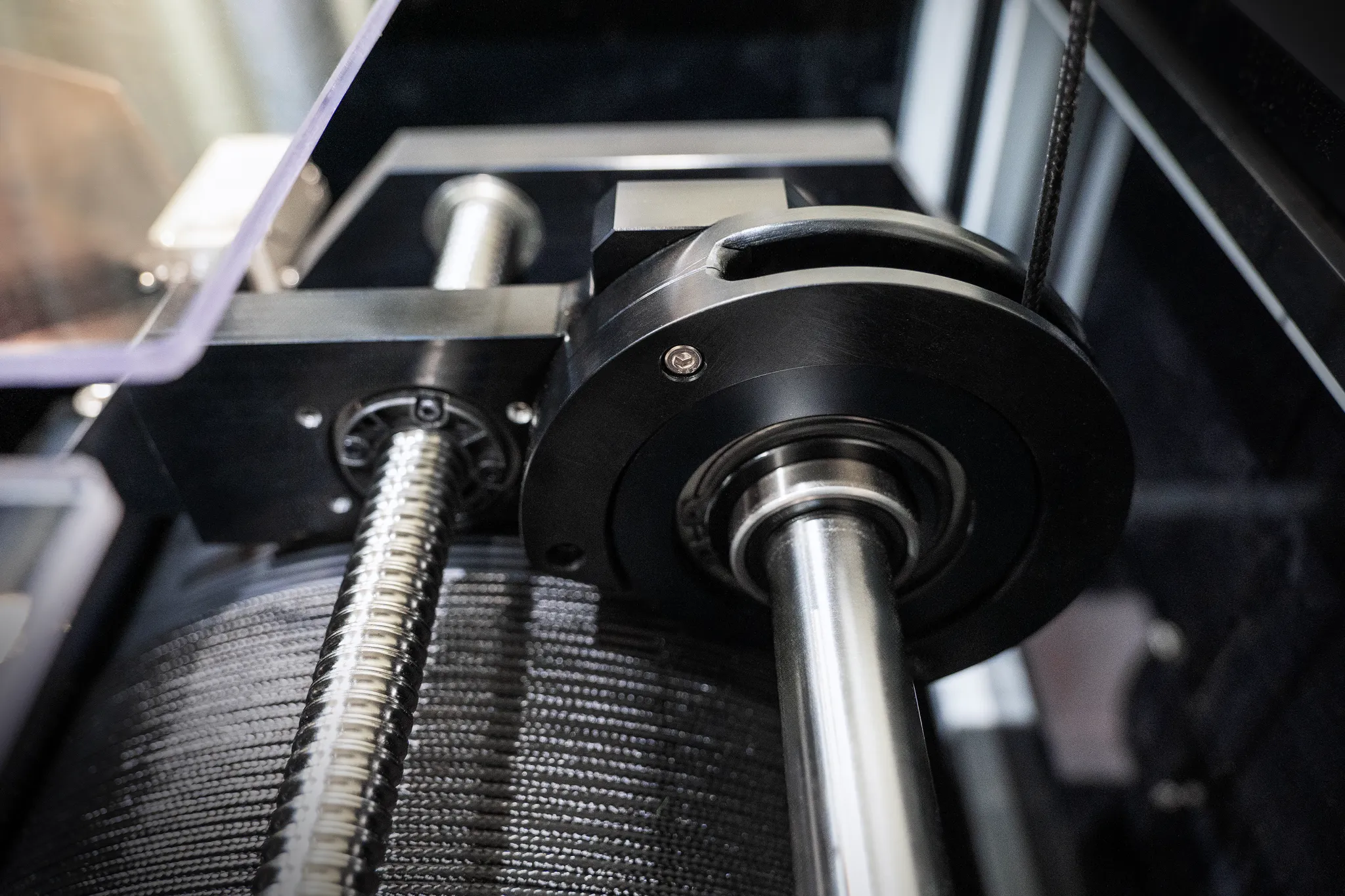

* Without truss for winch pulley fixation, direct construction in buyer's space.
* The scope of customization requires prior consultation.
